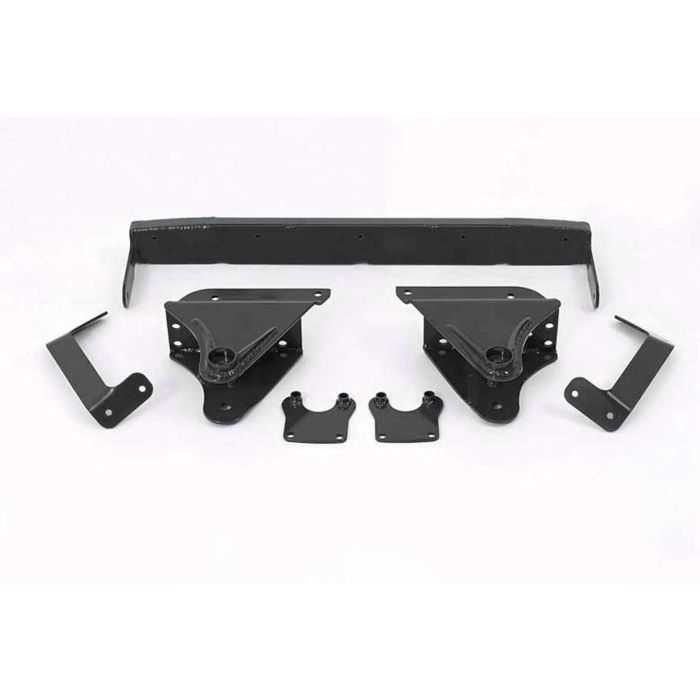

FABTECH 2000-05 FORD EXCURSION 4WD- 3.5″ FRONT SPRING HANGER SYSTEM W/ PERFORMANCE SHOCKS

PRODUCT OVERVIEW

DESCRIPTION

Obtain 3.5” of front end lift without changing the front leaf springs. The super stout spring hangers replace the factory units without welding or cutting. Excursion models will require a 2” rear block kit to level off the ride height. 2001-05 Excursion systems include replacement front frame crossmember and bumper brackets.

OTY PART # DESCRIPTION

1 FTS424-1BK FRONT SPRING HANGER KIT

1 FTSBK2 REAR BLOCK KIT

1 FTS351UBK REAR U-BOLT KIT

2 FTS7265 FRONT PERFORMANCE SHOCKS

2 FTS7266 REAR PERFORMANCE SHOCKS

INCLUDED SHOCKS

PERFORMANCE TWIN TUBE SHOCK

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

• Twin Tube Hydraulic Construction
• 9/16″ Hardened Chrome Piston Rod
• 1 3/8″ OD Piston
• Closed Cell Foam insert
• High Flow 9 Stage Valving

TIRES & WHEELS

Tire Size – 295/75R16 Wheel Size – 16×9 w/ 4 5/8in BS w/minor trimming

Tire Size – 33/12.50R18 Wheel Size – 18×9 w/ 4 1/2in BS w/minor trimming

ADDITIONAL INFORMATION

MODEL EXCURSION

SYSTEMS FRONT SPRING HANGER SYSTEM

MAKE FORD

LIFT 3.5"

DRIVE 4WD

YEAR 2000, 2001, 2002, 2003, 2004, 2005

FOOTNOTES

31. For precision centering of axle under vehicle order adjustable trac bar FTS451. Will not fit 1999-00 models with trac bar bolt head size of 5/8″
