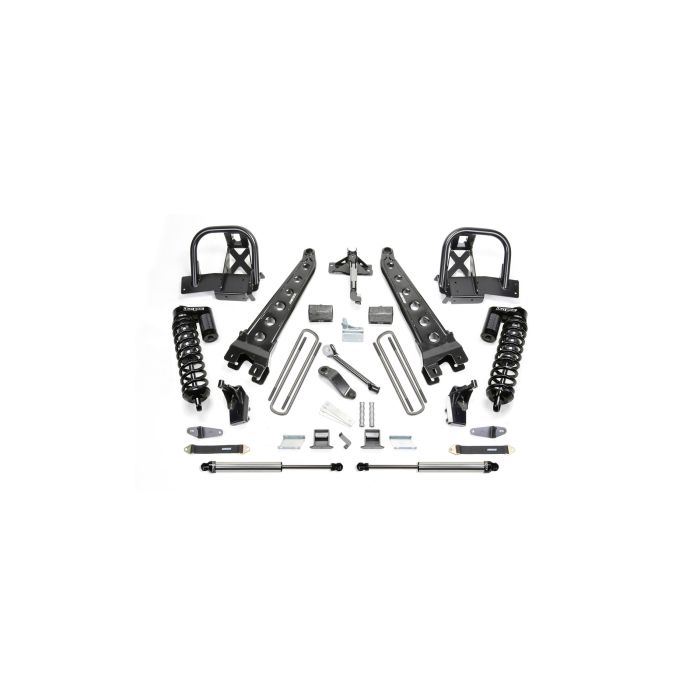

FABTECH 2011-16 4" Radius Arm System w/Dirt Logic 4.0 Coilovers & Rear Dirt Logic Shocks - Ford F350 4WD

PRODUCT OVERVIEW

Obtain maximum front suspension damping for Super Duty's with our Dirt Logic 4.0 Coilover Conversion system. The upper coilover mounts are constructed with 1.75 diameter DOM tubing that replaces the factory coil spring mounts and span across a wide section of the frame for proper impact load distribution. The lower mounts are 1/ 4" thick steel that attach to the axle housing, providing solid mounting points for the Dirt Logic 4.0 Coilover piggyback reservoir shocks.

Kit# K2206DL

Use 315/70R17 tires w/ 17x8 wheels w/ 4 1/2” BS w/ minor trimming

Use 325/65R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming

Use 35/12.50R20 tires w/ 20x10 wheels w/ 5” BS w/ minor trimming

Oty Part # Description

1 FTS22103 Component Box 1

1 FTS22139 Component Box 2

1 FTS22143 Front Coilover Conversion

2 FTS835222 Front Dirt Logic 4.0 Coilover

2 FTS810052 Rear Dirt Logic 2.25 Non Resi

*FOOTNOTES

27.Front drive shaft modification may be required to clear exhaust on gas motors.
