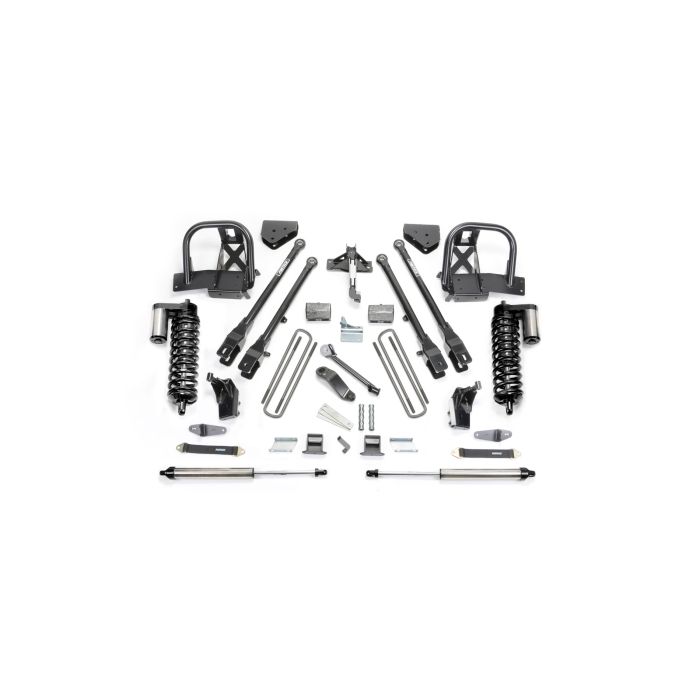

FABTECH 2011-16 6" 4 Link System w/ Front Dirt Logic 4.0 Coilovers & Rear Dirt Logic Shocks - Ford F350 4WD & 2011-13 Ford F450 4WD (8 Lug)

$7,189.72
SKU
K2146DL

PRODUCT OVERVIEW

Obtain maximum front suspension damping for Super Duty's with our Dirt Logic 4.0 Coilover Conversion system. The upper coilover mounts are constructed with 1.75 diameter DOM tubing that replaces the factory coil spring mounts and span across a wide section of the frame for proper impact load distribution. The lower mounts are 1/ 4" thick steel that attach to the axle housing, providing solid mounting points for the Dirt Logic 4.0 Coilover piggyback reservoir shocks. Also included in this system are billet sway bar end links with heim ends and quad layer limiting straps.

Kit# K2146DL

Use 315/70R17 tires w/ 17x8 wheels w/ 4 1/2” BS w/ minor trimming

Use 325/65R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming

Use 35/12.50R20 tires w/ 20x9 wheels w/ 5” BS w/ minor trimming

Oty Part # Description

1 FTS22140 Component Box 1

1 FTS22143 Component Box 2

1 FTS22080BK Component Box 3

2 FTS835002 Front Dirt Logic 4.0 Coilover

1 FTS22103 Rear Block Kit

2 FTS810052 Rear Dirt Logic 2.25 Non Resi

*FOOTNOTES

3. Non dually models only.

27. Front drive shaft modification may be required to clear exhaust on gas motor.

170. Vehicle may not sit level due to factory rear options.

More Information
Component Description: 6" 4 Link System w/ Front Dirt Logic 4.0 Coilovers & Rear Dirt Logic Shocks - 2011-16 Ford F350 4WD & 2011-13 Ford F450 4WD (8 Lug)
Please choose your option: Clear
Ship Via: Freight
