Cognito 4" Cognito Standard NTBD Lift Package 2011-2019 2500HD/3500HD


More Views

Part# 110-P0778
$2,499.96
customized options

* Required Fields

$2,499.96
2499.96 In Stock
Description

Details

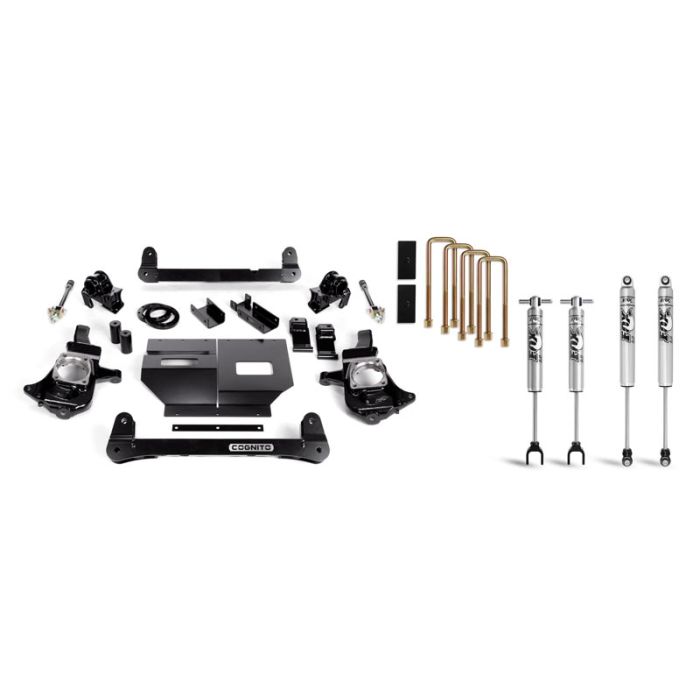

2011-2019 4" Standard Lift Kit by Cognito.

  • #Cogntio 4" Lift - 2500HD/3500HD 2WD 4WD Kit includes:

- (1) Front Suspension Lift Kit
- (2) Front Fox monotube shocks
- (2) Rear Fox monotube shocks
- (1) 1" block and u-bolt kit

Features:
- Non Torsion Bar Drop lift(Keeps The Torsion Bars Tucked Up In The Frame)
- 3/16" Thick Steel Skid Plate Which Doubles As A Sub-Frame Connector
- Full 4 Inch Front Differential Drop For Optimal CV Axle Angles
- Tierod Is Moved Up On the Knuckle a Full 4 Inch For Optimal Tierod Angles
- Scrub Radius Geometry Is The Same As Factory For Optimal Steering Feel At Low Speeds
- 4" Lift Cognito Exclusive Fox Shock Options


2 Holes To Be Drilled , This Is Due To The Nature Of The 4 Inch Non Torsion Bar Drop Design. Minor Cut To The Frame To Clear The Front Differential As It Drops Down. This Is Required On All Kits That Have The front Differential In The Proper Position

4 Inch Lift Kit Notes: If You Plan To Go Over 20MPH In 4WD, You Will Need Our Front CV Driveline & Trans Brackets

17" or 18" Factory single wheels will not work on this kit,

17" Factory Dually wheels & 20" factory single wheels will work on up to 35x12.50 tires

Shipping
Height x Length x Width (DIM): T/F
Weight: 1.0000
Shipping Price: $120.00
Ship Via: Freight
Los Banos California93635US
×
