FABTECH - 17-22 4" 4 Link System Ford F250/F350 4WD

PRODUCT OVERVIEW

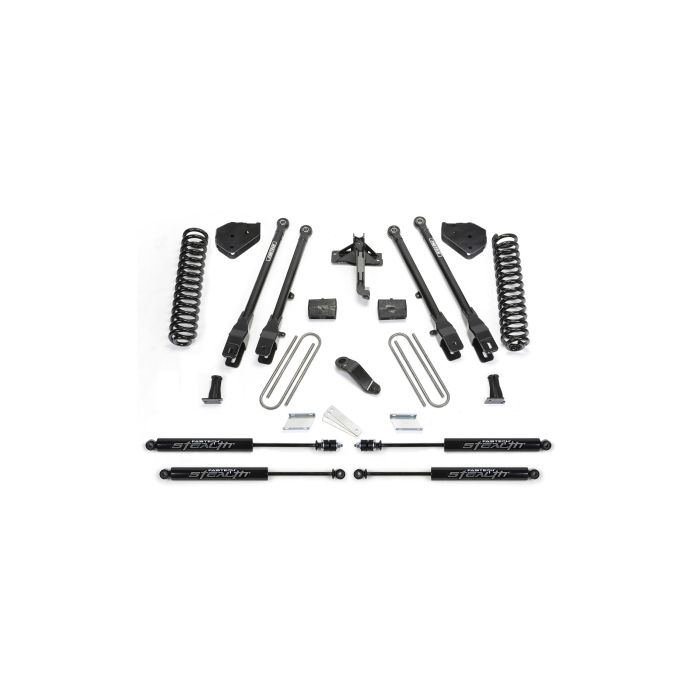

At the top of our Super Duty line is our famous bolt-on 4 Link System that provides unsurpassed articulation and wheel travel. These 2" diameter heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system is comes complete with our replacement Coil Springs, Sway Bar drops, Pitman Arm, and a rear Block & U-Bolt kit.

This system qualifies for our 5/60 Powertrain Warranty.

Kit# K2216,K2216M, K2216DL

Use 35/12.50R17 tires w/17x9 wheels w/ 4-3/4" BS w/minor trimming

Use 35/12.50R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming

Use 35/12.50R20 tires w/ 20x9 wheels w/ 5” BS w/ minor trimming

Oty Part # Description

Performance K2216

1 FTS22207 Coil Box Kit

1 FTS22216 Component Box 1

1 FTS22217 Component Box 2

1 FTS22214 Rear Box Kit

2 FTS7236 Front Performance Shock

2 FTS7266 Rear Performance Shock

Stealth K2216M

1 FTS22207 Coil Box Kit

1 FTS22216 Component Box 1

1 FTS22217 Component Box 2

1 FTS22214 Rear Box Kit

2 FTS6236 Front Stealth Shock

2 FTS6063 Rear Stealth Shock

Dirt Logic  K2216DL

1 FTS22207 Coil Box Kit

1 FTS22216 Component Box 1

1 FTS22217 Component Box 2

1 FTS22214 Rear Box Kit

2 FTS810962 Front Dirt Logic 2.25 Shock

2 FTS810052 Rear Dirt Logic 2.25 Shock

*FOOTNOTE 3. NON DUALLY MODELS ONLY.

165. SOME 2017 MODELS MAY REQUIRE A DUAL STEERING STABILIZER FOR OVERSIZED TIRES. ORDER DIRT LOGIC-FTS220512, DIRT LOGIC W/RESI-FTS221162 OR STEALTH-FTS8046. 167. DIESEL MODELS ONLY.
