FABTECH 2005-07 6" Radius Arm System -Ford F250 4WD w/o Factory Overload

PRODUCT OVERVIEW

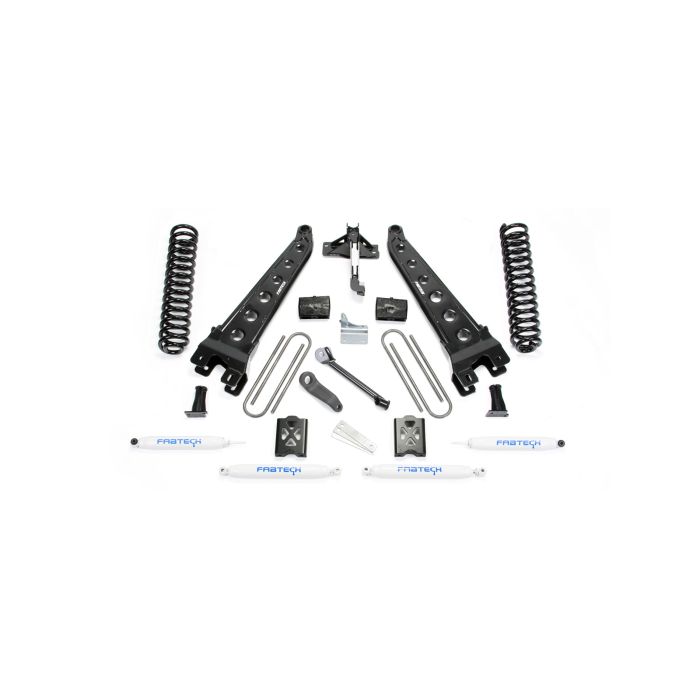

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6" replacement Coil Springs or the Dirt Logic 4.0 Coilover Shock conversion. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift includes a block & u-bolt kit.

Kit# K2011, K2011M, K2011DL

Use 315/70R17 tires w/ 17x8 wheels w/ 4 1/2” BS w/ minor trimming

Use 325/65R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming

Oty Part # Description

Performance K2011

1 FTS22024BK Coil Box Kit

1 FTS22026BK Component Box

1 FTS22033 Rear Block Kit

2 FTS7188 Front Performance Shocks

2 FTS7266 Rear Performance Shocks

Stealth K2011M

1 FTS22024BK Coil Box Kit

1 FTS22026BK Component Box

1 FTS22035 Rear Block Kit

2 FTS6188 Front Stealth Shocks

2 FTS6063 Rear Stealth Shocks

Dirt Logic K2011DL

1 FTS22024BK Coil Box Kit

1 FTS22026BK Component Box

1 FTS22033 Rear Block Kit

2 FTS810382 Front Dirt Logic 2.25 Non Resi

2 FTS810052 Rear Dirt Logic 2.25 Non Resi
