Cognito 3" Standard Leveling Lift Kit

More Views

Part# 110-90797
999.95 In Stock


"Cognito 3” Standard Leveling Lift Kit for 2019-2020 GMC Sierra 1500 and Chevrolet Silverado 1500 2WD/4WD trucks.

We’ve bundled everything you need in a leveling kit for your GM 1500 with high quality Cognito components. There’s no guesswork and you SAVE with the bundled price. Cognito components are engineered, manufactured and assembled in the USA.

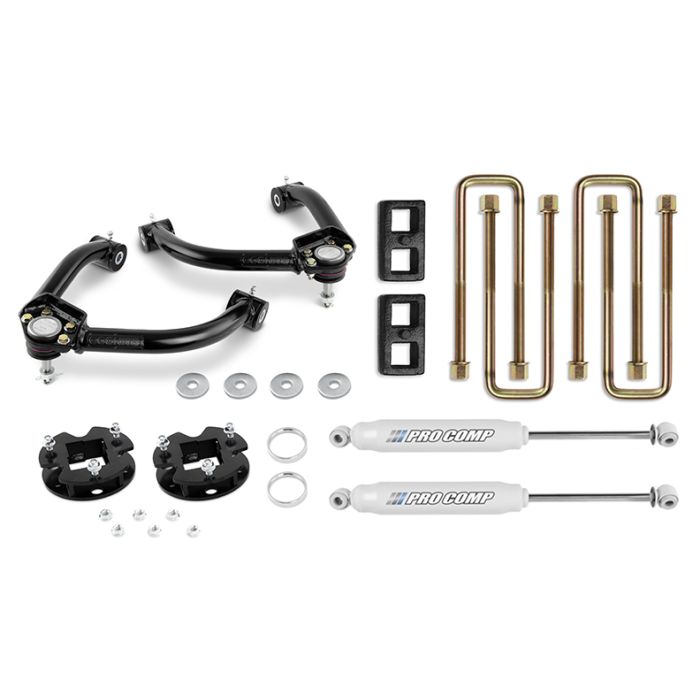

The Cognito 3” Standard Leveling Lift Kit includes the Cognito Standard Upper Control Arm Kit, 1.5” Strut Spacer Kit, .5” Preload Spacer Kit, 1.5” Block and U-Bolt Kit and Standard White Body rear shocks– all with hardware included. The Cognito Standard Upper Control Arms are built with a modified ball joint angle to eliminate travel limitations of the ball joint in lifted applications. This design also eliminates the need to cut the service perch off of the truck if they are used as part of our Cognito package or as a stock replacement. The 1.5” Strut Spacers are constructed out of heavy duty steel and are finished with a durable semi-gloss black power coating. The .5” Steel Preload Spacers are finished with a silver zinc plated finish. The Cognito 1.5” Block and U-Bolt Kit includes 1.5” tall powder coated semi-gloss black cast steel blocks and heavy duty zinc plated u-bolts. Standard White Body extended length rear shocks are also included in the kit.

Included components:

  • Cognito Standard Upper Control Arm Kit (110-90864)
  • 1.5” Strut Spacer Kit • .5” Preload Spacer Kit
  • Cognito 1.5” Block and U-Bolt Kit
  • Standard White Body Rear Shocks (210-90634 x2)
  • Cognito Sticker Pack


  • Arms have corrected ball joint angle
  • Made with bolt-in, maintenance free, high angle, heavy duty ball joints
  • Enhances the truck’s appearance and reduces the factory nose down rake
  • Maintains a minimum of 3” droop travel for more comfortable ride quality
  • Yields nominal 3” lift at the front wheels and 1.5” lift at the rear wheels
  • Fits up to 34”x12” tire and 9” wide wheel with 5.75” back space
  • 4 hour installation, no cutting or welding

WARNING! This product is not compatible with vehicles equipped with ARC ""Adaptive Ride Control"" (includes all 1500 Denali models). The Cognito Standard Upper Control Arm was not built with ARC compatibility and if installed will negate the ARC functionality of your 1500 Denali vehicle."

WARNING! To run factory wheels, large wheel spacers will be needed.
