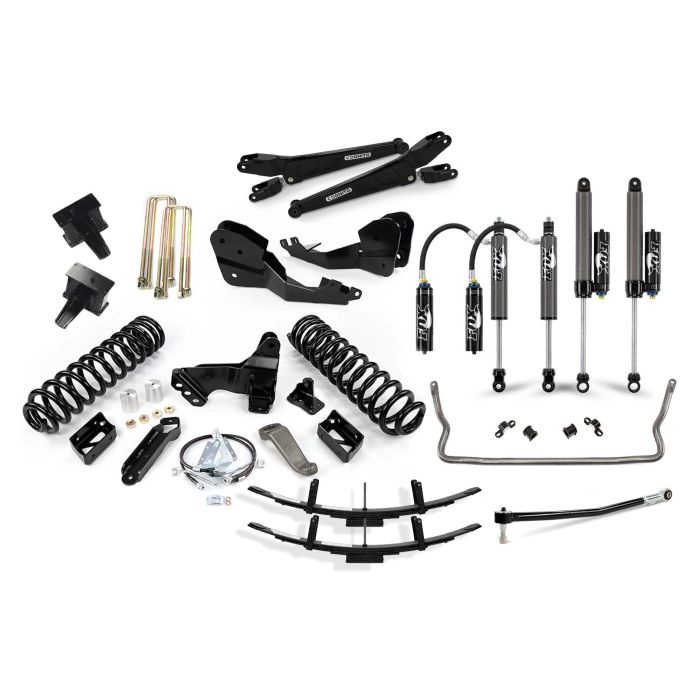

Cognito 8 / 9 Inch Elite Lift Kit with Fox FSRR 2.5 Shocks for 17-23 Ford F-250/F-350 4WD


Each Kit Features:

  • Yields 8-inch front lift and a 5-1/2 inch rear lift for 2017-2019 Trucks and 2020-2023 Tremor Truck models.
  • Yields 9-inch front lift and a 6-1/2 inch rear lift for 2020-2023 Trucks
  • Fox Factory Race Series 2.5 DSC Reservoir front and rear shocks
  • SM Series caster adjustable radius arms
  • HD adjustable track bar
  • Deaver Mini packs
  • HD front swaybar
  • Levels vehicle stance front to rear
  • Allows for up to a 38x13.5 Tire on a 10-inch Wide Wheel with 4.75-Inch Backspacing
  • 14-hour DIY install time
  • Made in the USA

We have bundled everything you need in a lift kit for your Ford F-250/ F-350 with high quality Cognito components. There is no guesswork. Cognito components are engineered, manufactured, and assembled in the USA.

The Cognito front lift components are designed and engineered to correct steering and suspension geometry while offering superior ride quality. This kit includes everything needed to achieve 6-inches of front lift for 2017-2019 trucks or 7-inches of front lift for 2020-2022 trucks with level rack front to rear.

The Cognito HD adjustable ability to easily adjust bar length after it's installed on your vehicle is a key feature, in addition to its Heavy-Duty construction, which includes a 1.25-Inch Heim joint at the chassis end, 1-Inch Uniball at the axle end, and 1.5 Inch x .25 Inch Inch DOM tubing (semi-gloss black powder coat finish).

Factory Race Series 2.5 Reservoir smooth body shocks give you enhanced ride quality and the control you need when heading off the pavement. They take their design from Foxs Off-Road race shocks, so they have been thoroughly perfected in brutal conditions that you will probably never see. Fox athletes push the boundaries in competition to develop race-proven performance you can bolt onto your Truck. Factory Series shocks provide improved damping in any terrain. Experience for yourself the incredible performance and precise control that Factory Race Series 2.5 Reservoir shocks deliver.

The Deaver mini packs replace the factory bottom overload spring with a progressive design that also offers an increase in ride height by .25 Inch, .59 inch, .93 inch, or 1.27 inch by removing any number of 3 spacer blocks.

The Cognito HD front sway bar is designed to reduce body roll, so you have better vehicle control and greatly improves traction for safer driving. These HD Sway Bars are developed for this specific application. Measuring 1.5-Inch in diameter and made from heat treated and hot formed 4140 chromoly steel for extra strength and durability. Larger sway bar clamps and polyurethane bushings are included.

Year Make Model Sub-Model
2017-2023 Ford F-350 Super Duty XLT
2017-2023 Ford F-350 Super Duty XL
2017-2023 Ford F-350 Super Duty Platinum
2018-2023 Ford F-350 Super Duty Limited
2017-2023 Ford F-350 Super Duty Lariat
2017-2023 Ford F-350 Super Duty King Ranch
2017-2023 Ford F-250 Super Duty XLT
2017-2023 Ford F-250 Super Duty XL
2017-2023 Ford F-250 Super Duty Platinum
2018-2023 Ford F-250 Super Duty Limited
2017-2023 Ford F-250 Super Duty Lariat
2017-2023 Ford F-250 Super Duty King Ranch
2020-2022 Ford F-350 Super Duty XL Plus
