FABTECH 2008-10 Ford F250 4WD- 6″ RADIUS ARM SYSTEM W/ DIRT LOGIC 4.0 COILOVERS & REAR DIRT LOGIC SHOCKS

PRODUCT OVERVIEW

DESCRIPTION

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift comes from our Dirt Logic 4.0 Coilover Shock conversion. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift is a block & u-bolt kit.

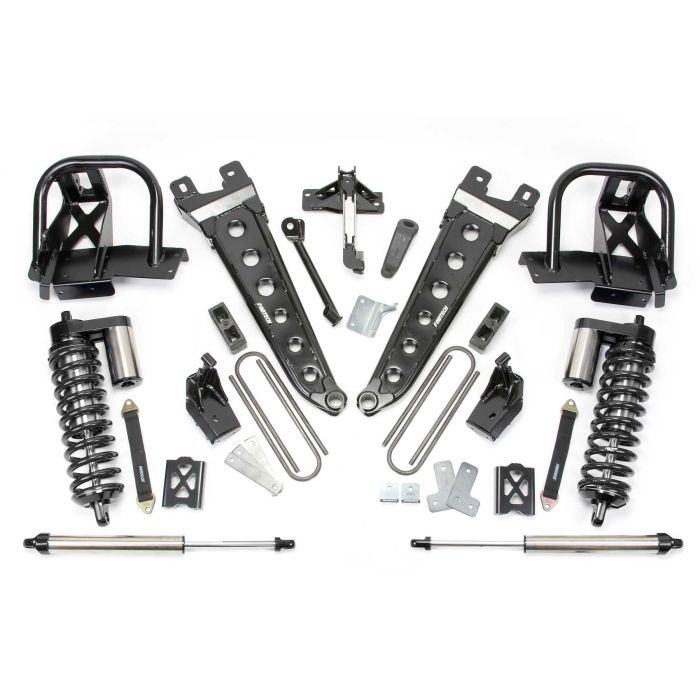

• Fabtech Replacement Radius Arms
• Front Dirt Logic 4.0 Coilovers
• Trac Bar Relocation Bracket
• Sway Bar Drop Brackets
• Pitman Arm Rear Block & U-bolt Kit

OTY PART # DESCRIPTION

1 FTS22139 COMPONENT BOX 1

1 FTS22078BK COMPONENT BOX 2

2 FTS835001 FRONT DIRT LOGIC 4.0 COILOVER

1 FTS22101 REAR BLOCK KIT

2 FTS810051 REAR DIRT LOGIC 2.25 NON RESI

FOOTNOTES

27. Front drive shaft modification may be required to clear exhaust on gas moto

ADDITIONAL INFORMATION

MODEL F250, MAKE FORD, SYSTEMS RADIUS ARM SYSTEM,  LIFT 6",  DRIVE 4WD,  YEAR 2008, 2009, 2010

TIRES & WHEELS

• Tire Size – 315/70R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming
• Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
• Tire Size – 35/12.50R20 Wheel Size – 20×10 w/ 5in BS w/minor trimming

FRONT DIRT LOGIC 4.0 PIGGY BACK RESI COILOVER

The Dirt Logic 4.0 provides the ultimate in hardcore offroad dampening capacity with superior highway comfort in a big package. This massive high end shock is designed for full size vehicles that required the biggest and best Coilover shock in a bolt on configuration. Nothing else comes close.

• 4.0″ OD Nickel Plated Body
• 3 5/8″ OD Billet Aluminum Piston
• 1 1/4″ Piston Rod
• Adjustable Coilover Construction
• 3/4″ Spherical Ball Mounting Ends

REAR DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.25″ OD Nickel Plated Body
• 2.0″ OD Billet Aluminum Piston
• 7/8″ Piston Rod Polyurethane Mounting Ends
