FABTECH 2015-18 FORD F150 2WD- 2″ UNIBALL UCA SYSTEM W/ FRONT DIRT LOGIC 2.5 RESI COILOVERS & REAR DIRT LOGIC 2.25 SHOCKS


More Views

Part# K2261DL
$2,866.92
2866.92 In Stock
Description

Details

PRODUCT OVERVIEW

DESCRIPTION

Obtain increased wheel travel and mild lift height with this heavy duty Upper Control Arm system. The high quality tubular Upper Control Arms feature 1.25" OD. .120" wall thick chromoly tube construction with 1" diameter Stainless Steel Uniballs that attach to the factory spindle without drilling.

These heavy duty UCA’s have been designed to work in conjunction with Fabtech’s legendary Dirt Logic 2.5 Coilover shocks for a complete front suspension system upgrade. The F150’s offroad suspension performance will be greatly enhanced due to the extensive ride tuning of the stainless steel Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25’s.

This outstanding system does not require drilling or cutting for installation and comes Fabtech’s 5/60 Powertrain warranty.

  • Built with same materials as found on Trophy Trucks
  • .120″ Wall 4130 Chromoly Tubing. 1.50″ OD
  • .250″ wall DOM Bushing Barrels
  • PTFE lined 1″ ID Stainless Steel American Uniball
  • 17-4 Stainless Misalignments
  • Heat Treated 17-4 Stainless Steel Tapered Uniball Pins

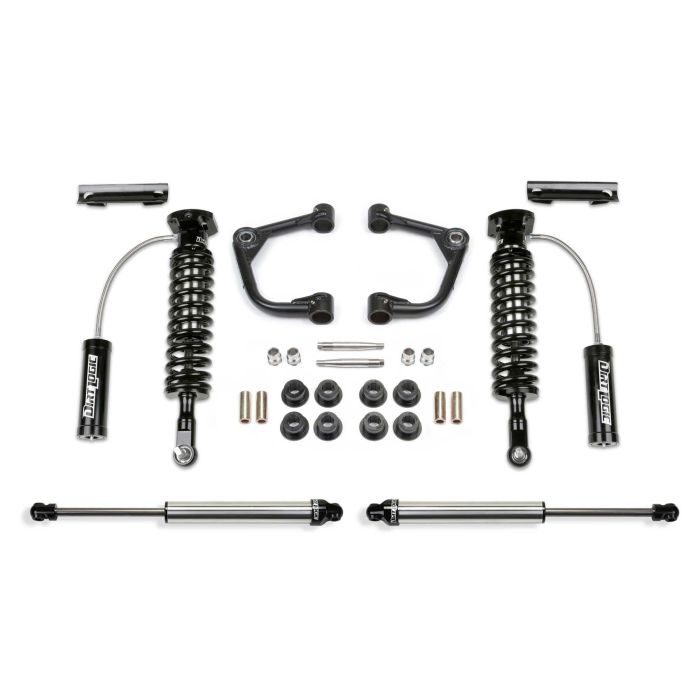

OTYPART #DESCRIPTION
1 FTS22182 UNIBALL UPPER CONTROL ARMS
1 FTS22270 FRONT DIRT LOGIC 2.5 RESI COILOVERS
2 FTS811382 REAR DIRT LOGIC 2.25 SHOCKS

INCLUDED SHOCKS



INCLUDED SHOCKS

FRONT DIRT LOGIC 2.5 RESI COILOVER

From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.



  • 2.5″ OD Stainless Steel Body
  • 2.25″ OD Billet Aluminum Piston
  • 7/8″ NitroSteel® Black Piston Rod
  • Cold Wound Coil Springs
  • Adjustable Coilover Construction
  • 5/8″ Spherical Ball Mounting Ends
  • 2.50″ OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose

REAR DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.



  • 2.25″ OD Stainless Steel Body
  • 2.0″ OD Billet Aluminum Piston
  • 7/8″ NitroSteel® Black Piston Rod
  • Polyurethane Mounting Ends

TIRES & WHEELS

  • Tire Size – 295/70R17 tire w/17×8 wheels w/4 1/2” BS w/minor trimming
  • Tire Size – 275/65R18 Wheel Size – 18×8 w/ 4 1/2in BS w/minor trimming
  • Tire Size – 285/55R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

ADDITIONAL INFORMATION

MODEL

SYSTEMS

MAKE

LIFT

DRIVE

YEAR

Shipping
Weight: 1.0000
Shipping Price: $200.00
Ship Via: FedEx
Los Banos California93635US
×
