FABTECH 2017-18 Ford F250/ F350 4 WD- 8″ RADIUS ARM SYSTEM W/ FRONT DIRT LOGIC 4.0 RESI COILOVERS & REAR DIRT LOGIC 2.25 SHOCKS


More Views

Part# K2301DL
$4,894.66
4894.66 In Stock
Description

Details

PRODUCT OVERVIEW

DESCRIPTION

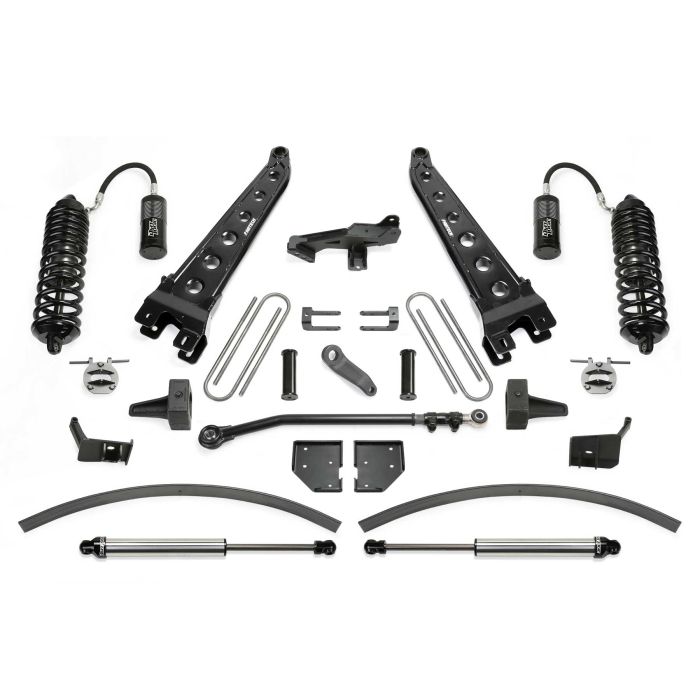

Fabtech’s 8″ Radius Arm system for the Ford Super Duty is built to handle the on and offroad demands of the truck enthusiast. This Radius Arm system is a heavy duty upgrade to the factory suspension and will provide additional strength to the vehicle.

The heart of this quality system is Fabtech’s legendary tubular Radius Arms. The design of these arms comes from Fabtech’s racing experience and are built with a tubular structure reinforced by dimple die side plates and heavy gusseting for rugged offroad use. They are superior in strength to the stock stamped arms.

Unique to this 8″ system is Fabtech’s extended length Track Bar to address the hyper sensitive steering box of the late model Super Duty. Fabtech is the only manufacturer with this ground breaking system that offers proper steering performance. Fabtech’s extended length Track Bar is 4″ longer than stock and is offset to the driver side with a stout 1/4″ thick steel mounting bracket. This design helps keep the Track Bar and Draglink closer to parallel than the factory angles to reduce push in the steering. The Track Bar allows for full lock steering of 15.50 wide tires w/ 4 3/4″ BS wheels.

Included in this system is the massive Dirt Logic 4.0 Resi Coilover Conversion for outstanding damping capacity offroad with a quality on road ride. The Coilover bolts in place of the factory coil spring without removal of the coil spring bucket. The giant 4″ diameter aluminum remote reservoir mounts horizontally above the Coilover to allow for full compression travel with oversized tires. The Dirt Logic 4.0 Resi Coilover is the biggest and baddest on the market for the Ford Super Duty.

This high quality 8″ System provides increased strength and performance for the demanding Super Duty enthusiast.

System includes a free 5 year 60,000 mile powertrain warranty.

Each Fabtech component has been designed with specific features and benefits that create this quality suspension system. For a greater understanding of each these components please see below.Fabtech Replacement Radius Arms Fabtech Front Dirt Logic 4.0 Resi Coilovers Track Bar Relocation Bracket Extended Length Track Bar Sway Bar Drop Brackets Pitman Arm Rear Block & U-bolt Kit Rear Add-a-leaf Kit.

RADIUS ARM

Tubular construction with dimple die side plate for superior strength. Arms are offset for full turning radius with 15.50 wide tires on 4 3/4″ back space wheels. Adjustable alignment cams on the arms allow for an additional 1.5-2 degrees of caster adjustment. Each Radius Arm features Fabtech’s proprietary 5 Ton Joint on the pivot side at the frame. These joints have been proven in rugged military use for over 10 years and are both quiet and strong.

DIRT LOGIC4.0 CONVERSION

Simplistic super stout 1/4″ thick steel brackets utilize the factory coil bucket to bolt in the big Dirt Logic 4.0 Coilover. A massive 4″ diameter stainless steel body with 1.25″ NitroSteel® piston rod for maximum corrosion resistance and durability for the most aggressive driving conditions. American made coil springs handle the weight of the Super Duty while providing 2″ of increased wheel travel over stock. The remote aluminum reservoir dissipates heat for consistent damping when driving over extreme terrain at high speed. The ultimate of all coilover shocks.

EXTENDED LENGTH TRACK BAR & BRACKET

This unique design features an offset, extended length adjustable Track Bar to address the hyper sensitive steering box of the late model Super Duty when running oversized tires. The Track Bar is built of 1.50 OD .375 wall DOM tubing and is 4″ longer than stock. The Track Bar is attached to the frame with a 1/4″ thick frame bracket that is offset to the driver side with a support brace to eliminate deflection. A 15.50 wide tire on 4 3/4″ backspace wheel will still turn full lock without interference. The extended length Track Bar is re-positioned to be closer to neutral with the factory drag link than stock. This change results in reducing tire shake and bump steer far more effectively than with just a Track Bar bracket. A Fabtech exclusive.

DROPPED PITMAN ARM

Forged steel construction with high strength material that exceeds the factory specifications. Designed specifically for the Super Duty to work in conjunction with the factory drag link and Fabtech’s extended length Track Bar for proper steering functionality.

FRONT BUMP STOP BRACKETS

Heavy duty 1/4″ thick steel brackets extend the factory bump stop cushions down to eliminate over cycling of the suspension. The bracket’s semi boxed construction can handle the full impact compression of the massive Super Duty. SWAY BAR BRACKETS 1/4″ thick steel drop brackets re-position the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range.

BRAKE LINE BRACKETS

Re-positions the factory brake lines down on the frame for the new travel range without having to open the brake system. Keeps factory fluid system intact.

STEERING STABILIZER BRACKETS

Retains the stock Ford heavy duty steering stabilizer with a 1/4″ thick steel bracket and support brace to help reduce tire shimmy.

REAR ADD-A-LEAF

A single leaf is inserted into the spring pack to provide an additional 1.5″ of rear lift with a double pin configuration for strength.

REAR LIFT BLOCKS

Cast iron 5.75″ rear lift blocks with an integrated bump stop replace the stock blocks for additional lift without changing the ride quality of the factory rear suspension or load carrying capacity.

REAR U-BOLTS

American made U-Bolts designed to attach the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.

DIRT LOGIC

2.25 SHOCKS Constructed of a stainless steel body with NitroSteel piston rod for maximum corrosion resistance and durability. Superior ride quality both on and offroad. Excellent damping for offroad use.

OTY PART # DESCRIPTION

  • 1 FTS22272 COMPONENT BOX
  • 1 FTS22279 REAR BLOCK KIT
  • 1 FTS835237D FRONT DIRT LOGIC 4.0 RESI COILOVER (DRIVER)
  • 1 FTS835237P FRONT DIRT LOGIC 4.0 RESI COILOVER (PASSENGER)
  • 2 FTS810052 REAR DIRT LOGIC 2.25 SHOCK

FOOTNOTES

3. Non dually models only.

163. Vehicles equipped with 2 piece driveshaft require FTS419.

167. Diesel models only. 175. Vehicles w/factory rear sway bar must order extended sway bar link kit FTS22276.

179. Front driveshaft modification is required or order driveshaft FTS92035.

ADDITIONAL INFORMATION

YEAR 2017, 2018 MAKE FORD MODEL F450 & F550, DRIVE 4WD

TIRES & WHEELS

  • Use 38/13.50R18 tires w/18X9 wheels w/ 4 3/4″ BS w/minor trimming
  • Use 38/15.50R18 tires w/18X9 wheels w/ 4 3/4″ BS w/cutting
  • Use 38/13.50R20 tires w/20X9 wheels w/ 5″ BS w/minor trimming
  • Use 38/15.50R20 tires w/20X12 wheels w/ 4 3/4″ BS w/cutting
  • Use 40/15.50R20 tires w/20X12 wheels w/ 4 3/4″ BS w/cutting

FRONT DIRT LOGIC 4.0 RESI COILOVER

The Dirt Logic 4.0 provides the ultimate in hardcore offroad dampening capacity with superior highway comfort in a big package. This massive high end shock is designed for full size vehicles that required the biggest and best Coilover shock in a bolt on configuration. Nothing else comes close.

  • 4.0″ OD Stainless Steel Body
  • 3 5/8″ OD Billet Aluminum Piston
  • 1 1/4″ NitroSteel® Black Piston Rod
  • Adjustable Coilover Construction
  • 3/4″ Spherical Ball Mounting Ends
  • 4.0″ OD Aluminum Resi

REAR DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

  • 2.25″ OD Stainless Steel Body
  • 2.0″ OD Billet Aluminum Piston
  • 7/8″ NitroSteel® Black Piston Rod
  • Polyurethane Mounting Ends

INSTRUCTIONS

PDF DOWNLOADS

Shipping
Weight: 1.0000
Shipping Price: $200.00
Ship Via: Freight
Los Banos California93635US
×
