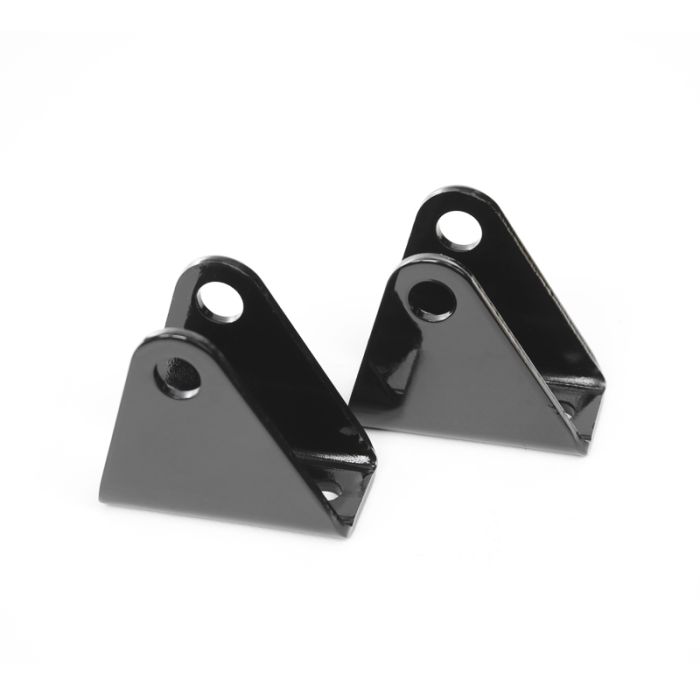

Cognito Front Lower Shock Mount Bracket for 01-10 Silverado/Sierra 2500/3500 2WD/4WD

Stage 1 "Basic" Leveling Shock Extender - 1-1.5" Height over factory

Application: 2001-2010 Chevy/GM 2wd/4wd 2500HD & 3500HD including dually

Overview:

The Stage 1 "Basic" Leveling Shock Extender is a simple fix to the first problem faced when adjusting your torsion bars on a Chevy/GM HD to add a mild amount of lift, commonly known as "Leveling" or "Cranking". If you are looking for a slight gain in height and need to do it on a budget, NCT.com suggests you simply add these shock extenders and use with the adjustability in your factory torsion keys.

Stage 1 "Basic" Leveling System Includes:

• CMS-110-90244  Shock extender kit for use with factory shocks
• Complete hardware and instructions

Features & Benefits:

• Allows a customer to level their truck stance without over-extending the factory shock.
• DIY friendly

Notes:

• Over-Cranking the suspension will reduce the ride height drop travel. This will affect the ride quality and is not recommended.
• The distance between the upper control arm and frame drop stop should be NO-LESS than 5/8" distance at ride height.
• With this system you will be allowed to raise the front of a single wheel HD truck close to a level stance, without hindering the ride quality too much.

Installation:

• DIYer Install time including adjusting ride height - 45 min-1.0 Hours
• Have the vehicle professionally aligned after installation.
