FABTECH 2005-07 6" 4 Link System - Ford F250 4WD w/ Factory Overload

PRODUCT OVERVIEW

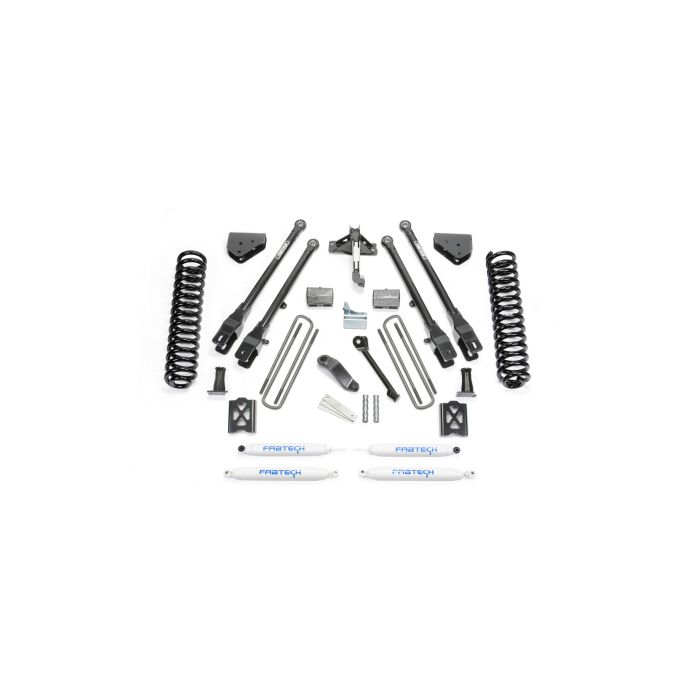

At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our replacement Coil Springs. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift is a block & u-bolt kit.

Kit# K20131, K20131M, K20131DL

Use 315/70R17 tires w/ 17x8 wheels w/ 4 1/2” BS w/ minor trimming

Use 325/65R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming

Oty Part # Description

Performance K20131

1 FTS22024BK Coil Box Kit

1 FTS22027BK Component Box 1

1 FTS22049BK Component Box 2

1 FTS22035 Rear Block Kit

2 FTS7188 Front Performance Shocks

2 FTS7266 Rear Performance Shocks

Stealth K200131M

1 FTS22024BK Coil Box Kit

1 FTS22027BK Component Box 1

1 FTS22049BK Component Box 2

1 FTS22035 Rear Block Kit

2 FTS6188 Front Stealth Shocks

2 FTS6063 Rear Stealth Shocks

Dirt Logic K20131

1 FTS22024BK Coil Box Kit

1 FTS22027BK Component Box 1

1 FTS22049BK Component Box 2

1 FTS22033 Rear Block Kit

2 FTS810382 Front Dirt Logic 2.25 Non Resi

2 FTS810052 Rear Dirt Logic 2.25 Non Resi
