FABTECH 2005-07 6" 4 Link System w/ Dirt Logic SS 4.0 Coilovers & Rear Dirt Logic SS Shocks - Ford F250 4WD w/o Factory Overload


More Views

Part# K2014DL
$5,438.58
5438.58 In Stock
Description

Details

PRODUCT OVERVIEW

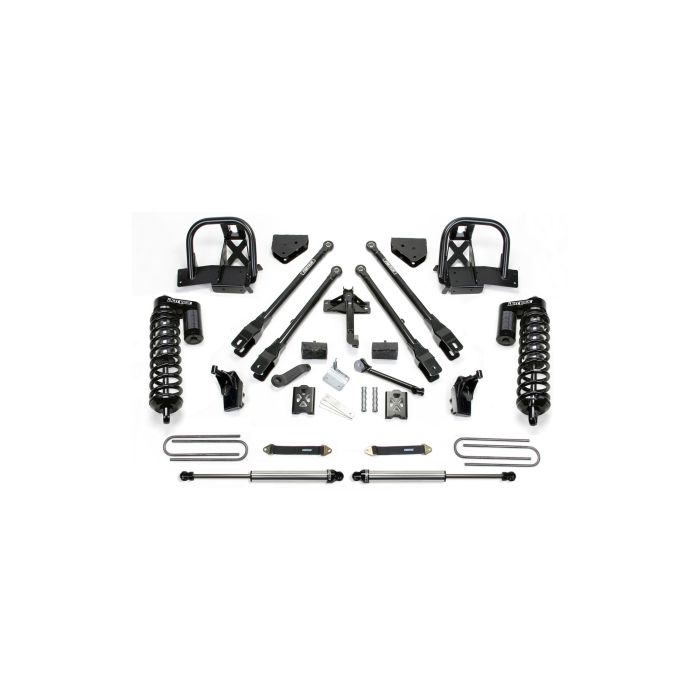

At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system comes with our Dirt Logic 4.0 Coilover Shock conversion. Also included are Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift includes a block & u-bolt kit.

Kit# K2014DL

Use 315/70R17 tires w/ 17x8 wheels w/ 4 1/2” BS w/ minor trimming

Use 325/65R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming

Oty Part # Description

1 FTS22027BK Component Box 1

1 FTS22049BK Component Box 2

1 FTS22052BK Component Box 3

2 FTS835002 Front Dirt Logic 4.0 Coilover

1 FTS22033 Rear Block Kit

2 FTS810052 Rear PDirt Logic 2.25 Non Resi

*FOOTNOTES

38. Will not work on models with digital climate control.

Shipping
Weight: 1.0000
Shipping Price: $200.00
Ship Via: Freight
