FABTECH 2008-16 6" Radius Arm System - Ford F350 4WD & 2011-13 Ford F450 4WD (8 Lug)


More Views

Part# K2131
$1,753.17
customized options

* Required Fields

$1,753.17
1753.17 In Stock
Description

Details

PRODUCT OVERVIEW

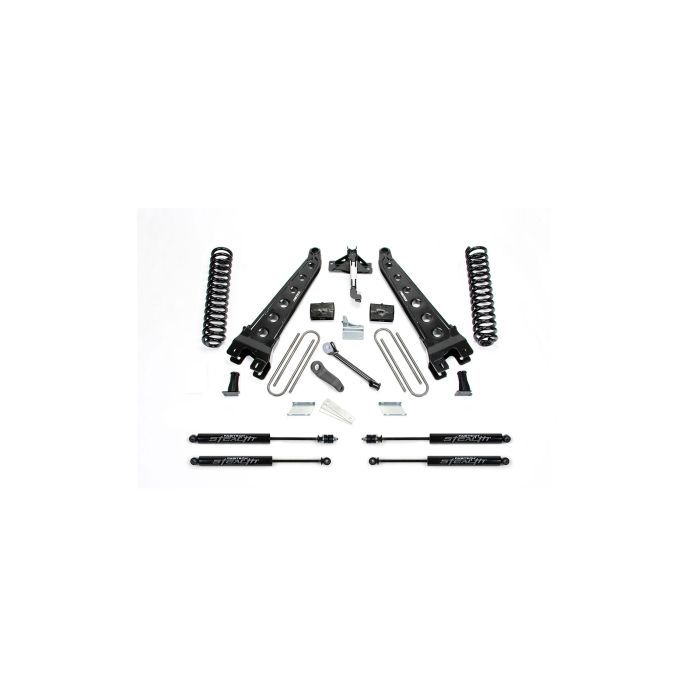

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift options includes 6" replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit.

Kit# K2131, K2131M, K2131DL

Use 315/70R17 tires w/ 17x8 wheels w/ 4 1/2” BS w/ minor trimming

Use 325/65R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming

Use 35/12.50R20 tires w/ 20x9 wheels w/ 5” BS w/ minor trimming

Oty Part # Description

Performance K2131

1 FTS22024BK Coil Box Kit

1 FTS22139 Component Box

1 FTS22103 Rear Block Kit

2 FTS7188 Front Performance Shocks

2 FTS7266 Rear Performance Shocks

Stealth K2131M

1 FTS22024BK Coil Box Kit

1 FTS22139 Component Box

1 FTS22103 Rear Block Kit

2 FTS6188 Front Stealth Shocks

2 FTS6063 Rear Stealth Shocks

Dirt Logic K2131DL

1 FTS22024BK Coil Box Kit

1 FTS22139 Component Box

1 FTS22103 Rear Block Kit

2 FTS810382 Front Dirt Logic 2.25 Non Res

i 2 FTS810052 Rear Dirt Logic 2.25 Non Resi

*FOOTNOTES

3. Non dually models only.

27. Front drive shaft modification may be required to clear exhaust on gas motor.

170. Vehicle may not sit level due to factory rear options.

Shipping
Weight: 1.0000
Shipping Price: $200.00
Ship Via: Freight
Los Banos California93635US
×
