FABTECH 2001-10 GM C/K2500HD / C/K3500HB- 6″ PERFORMANCE SYSTEM W/ SHOCKS

PRODUCT OVERVIEW

DESCRIPTION

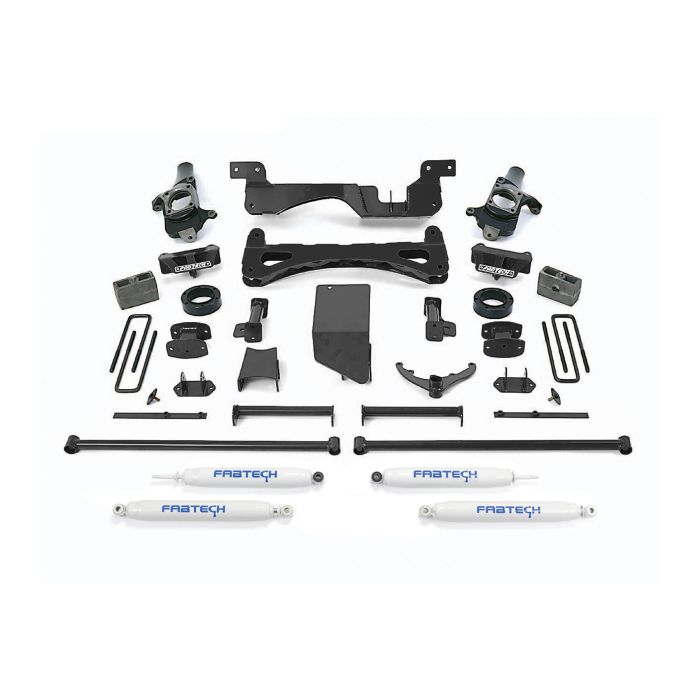

Our 6" system for 2001-10 GM HD’s has been designed to provide superior suspension performance for daily driving or for offroad. This is accomplished using our proven one piece lower control arm crossmembers and extended length steering knuckles with a multitude of shock absorber options. The 1/4" thick arched lower control arms crossmembers include an integrated front differential skid plate, crossmembers support tubes and rear impact struts to distribute front suspension impact loads through the frame evenly. A new knuckle design was introduced in 2007 with this system that provides reduced track width to keep the tires under the fenders. This system also includes torsion bar drop mounts, extended length sway bar links with urethane bushings, front and rear bump stop brackets, and rear blocks.

• Heavy Duty 1/4" Thick, High Arched Crossmember
• Front Differential Skid Plate
• Ductile Iron Steering Knuckles
• Torsion Bar Drop Brackets
• Impact Struts
• Billet Sway Bar End Links
• Rear Block & U-bolt Kit

PERFORMANCE SHOCKS

QTY PART # DESCRIPTION

1 FTS21008BK COMPONENT BOX 1

1 FTS21009BK COMPONENT BOX 2

2 FTS7191 FRONT PERFORMANCE SHOCKS

2 FTS7333 REAR PERFORMANCE SHOCKS

INCLUDED SHOCKS

PERFORMANCE TWIN TUBE SHOCK

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

• Twin Tube Hydraulic Construction
• 9/16″ Hardened Chrome Piston Rod
• 1 3/8″ OD Piston
• Closed Cell Foam insert
• High Flow 9 Stage Valving

STEALTH SHOCKS

QTY PART # DESCRIPTION

1 FTS21008BK COMPONENT BOX 1

1 FTS21009BK COMPONENT BOX 2

2 FTS6191 FRONT STEALTH SHOCKS

2 FTS6064 REAR STEALTH SHOCKS

INCLUDED SHOCKS

STEALTH MONOTUBE SHOCK

Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price. Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires. All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.

• 50mm OD Seamless Steel Body
• 46mm High Flow Piston for best ride
• Vehicle specific valving designed for oversized tires
• Full floating piston separates gas from oil for a consistent ride
• 14mm Nitrocarb piston rod resists rock chips and rusting
• All black finish with raised nameplate as a signature of quality

DIRT LOGIC SHOCKS

QTY PART # DESCRIPTION

1 FTS21008BK COMPONENT BOX 1

1 FTS21009BK COMPONENT BOX 2

2 FTS810172 FRONT DIRT LOGIC 2.25 NON RESI

2 FTS810182 REAR DIRT LOGIC 2.25 NON RESI

INCLUDED SHOCKS

DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.25″ OD Stainless Steel Body
• 2.0″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® Black Piston Rod
• Polyurethane Mounting Ends

TIRES & WHEELS

Tire Size – 315/75R16 Wheel Size – 16×8 w/ 4 5/8in BS w/minor trimming

Tire Size – 315/70R17 Wheel Size – 17×8 w/ 4 5/8in BS w/minor trimming

Tire Size – 325/65R18 Wheel Size – 18×8 w/ 5in BS w/minor trimming

Tire Size – 35/12.50R20 Wheel Size – 20×8.5 w/ 4 3/4in BS w/minor trimming

ADDITIONAL INFORMATION

MAKE GM MODEL C2500HD, C3500HD, K2500HD, K3500HD

DRIVE 2WD, 4WD

YEAR 2001, 2002, 2003, 2004, 2005, 2006, 2007, 2008, 2009, 2010

SYSTEMS PERFORMANCE SYSTEM

LIFT 6"

FOOTNOTES

3. Non dually models only.

4. Larger tires cannot be installed on OEM wheels.

12. Does not fit models with Quadrasteer.

14. Can not use OEM wheel & tire.

15. Will experience some loss of turning radius.

50. Installation requires welding.
