FABTECH 2008-16 Ford F250 / F350 4WD & 2011-13 Ford F450 - 8INCH 8 LUG- ADD LEAF SPRING

PRODUCT OVERVIEW

DESCRIPTION

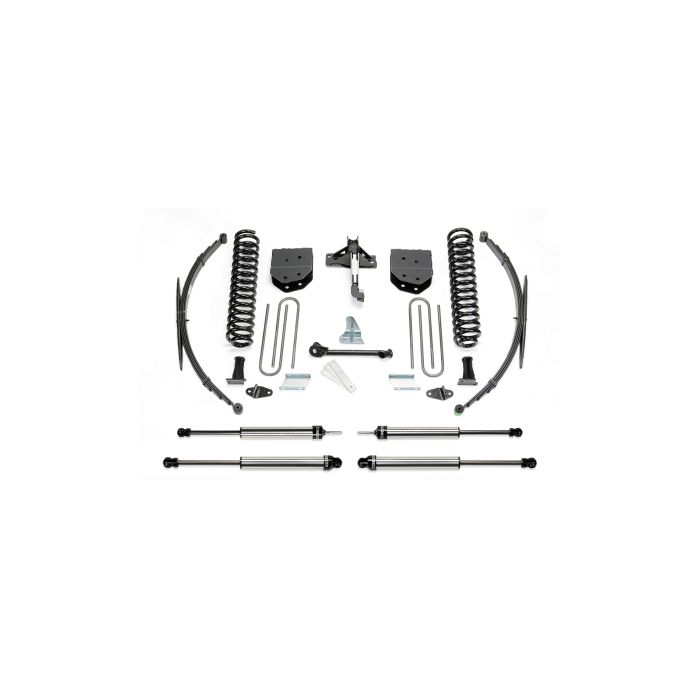

As a popular alternative to our Radius Arm and 4 Link System this Basic Drop Bracket system is designed for the budget minded enthusiast. Application utilizes the stock radius arm. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, Coil Springs, U-bolt kit, and replacement rear Leaf Springs.

Kit# K2127, K2127M, K2127DL

Use 355/65R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming

Use 37x13.50R20 tires w/ 20x10 wheels w/ 4 1/2” BS w/ minor trimming

Oty Part # Description

Performance K2127

1 FTS22025BK Coil Box Kit

1 FTS22138 Component Box

1 FTS22114 Rear Leaf Spring Kit

2 FTS7189 Front Performance Shocks

2 FTS7266 Rear Performance Shocks

Stealth K2127M

1 FTS22025BK Coil Box Kit

1 FTS22138 Component Box

1 FTS22114 Rear Leaf Spring Kit

2 FTS6189 Front Stealth Shocks

2 FTS6063 Rear Stealth Shocks

Dirt Logic K2127DL

1 FTS22025BK Coil Box Kit

1 FTS22138 Component Box

1 FTS22114 Rear Leaf Spring Kit

2 FTS810392 Front Dirt Logic 2.25 Non Resi

2 FTS810052 Rear Dirt Logic 2.25 Non Resi

*FOOTNOTES

3. Non dually models only.

27. Front driveline modification may be required to clear exhaust on gas motor.

29. Rear leaf springs may reduce load carrying capacity.

170. Vehicle may not sit level due to factory rear options.
