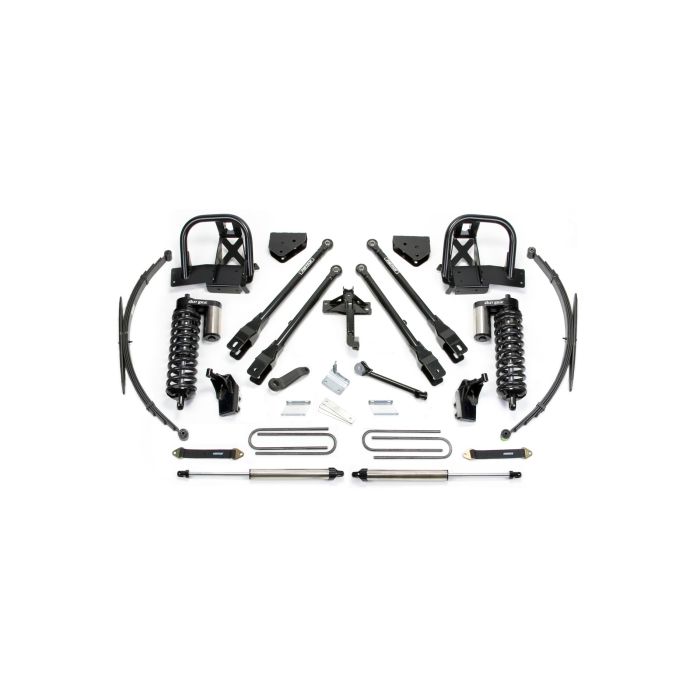

FABTECH 2011--16 8" 4 Link System w/ Front Dirt Logic 4.0 Coilovers & Rear Dirt Logic Shocks - Ford F250/F350 4WD & 2011-13 Ford F450 4WD (8 Lug)
PRODUCT OVERVIEW
Obtain maximum front suspension damping for Super Duty's with our Dirt Logic 4.0 Coilover Conversion system. The upper coilover mounts are constructed with 1.75 diameter DOM tubing that replaces the factory coil spring mounts and span across a wide section of the frame for proper impact load distribution. The lower mounts are 1/ 4" thick steel that attach to the axle housing, providing solid mounting points for the Dirt Logic 4.0 Coilover piggyback reservoir shocks. Also included in this system are billet sway bar end links with heim ends and quad layer limiting straps.
Kit# K2144DL
Use 355/65R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming
Use 37/13.50R20 tires w/ 20x10 wheels w/ 4 1/2” BS w/ minor trimming
Oty Part # Description
1 FTS22140 Component Box 1
1 FTS22143 Component Box 2
1 FTS22080BK Component Box 3
2 FTS835012 Front Dirt Logic 4.0 Coilover
1 FTS22114 Rear Leaf Spring Kit
2 FTS810052 Rear Dirt Logic 2.25 Non Resi
*FOOTNOTES
3. Non dually models only.
27. Front drive shaft modification may be required to clear exhaust on gas motor.
29. Rear leaf springs may reduce load carrying capacity.
170. Vehicle may not sit level due to factory rear options.
