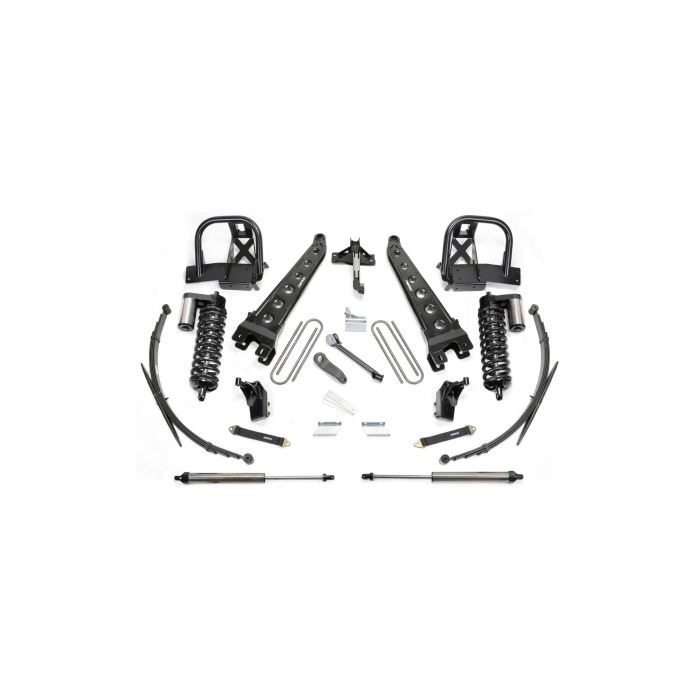

FABTECH 2008-10 8" Radius Arm System w/ Dirt Logic SS 4.0 Coilovers & Rear Dirt Logic SS Shocks - Ford F250/F350 4WD

PRODUCT OVERVIEW

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift includes the Dirt Logic 4.0 Coilover Shock conversion. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, U-bolt kit, and replacement rear Leaf Springs.

Kit# K2066DL

Use 355/65R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming

Use 37x13.50R20 tires w/ 20x10 wheels w/ 4 1/2” BS w/ minor trimming

Oty Part # Description

1 FTS22139 Component Box 1

1 FTS22078BK Component Box 2

2 FTS835012 Front Dirt Logic 4.0 Coilover

1 FTS22114 Rear Leaf Spring Kit

2 FTS810052 Rear Dirt Logic 2.25 Non Resi

*FOOTNOTES

3. Non dually models only.

27. Front drive shaft modification may be required to clear exhaust on gas motor.

29. Rear leaf springs may reduce load carrying capacity.
