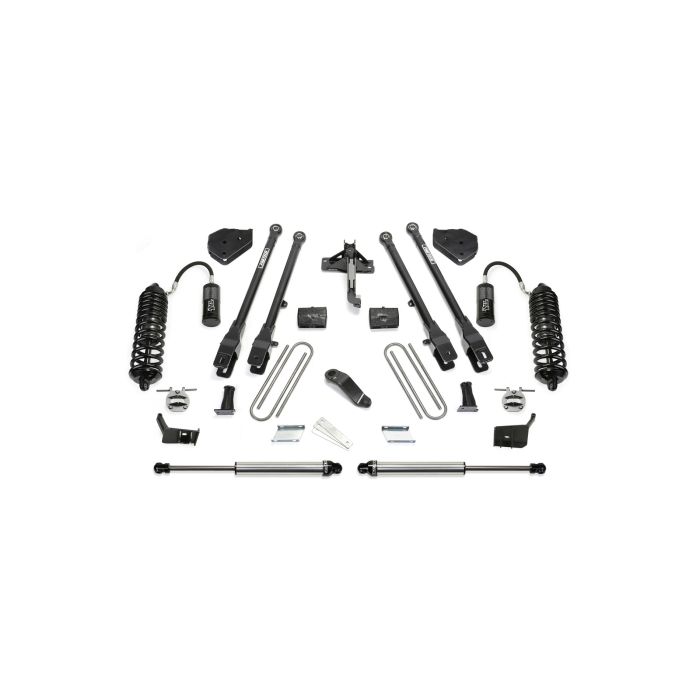

FABTECH 2017 6" 4 Link System w/ Front Dirt Logic 4.0 Resi Coilovers & Rear Dirt Logic 2.25 Shocks -Ford F250/F350 4WD


More Views

Part# K2232DL
$4,734.09
4734.09 In Stock
Description

Details

PRODUCT OVERVIEW

For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2" diameter heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. The system also includes Sway bar drops, Trac Bar relocation bracket, Pitman Arm, and a rear Block & U-Bolt kit.

This new system utilizes the factory coil spring bucket for a fast, easy installation with an affordable price. Dirt Logic Coilovers are constructed with a Stainless Steel body and NitroSteel® piston rod for maximum corrosion resistance. The Dirt Logic 4.0 for 6” lift systems feature dual rate coil springs for a superior quality both on and offroad.

This system qualifies for our 5/60 Powertrain Warranty.

Kit# K2232DL

Use 37/12.50R17 tires w/17x9 wheels w/ 4-3/4" BS w/minor trimming

Use 37/12.50R18 tires w/18x9 wheels w/ 4-3/4" BS w/minor trimming

Use 37/13.50R20 tires w/20x9 wheels w/ 5" BS w/minor trimming

Oty Part # Description

1 FTS22221 Component Box 1

1 FTS22222 Component Box 2

1 FTS22219 Rear Block Kit

1 FTS835232D Front Dirt Logic 4.0 Resi Coilover (Driver)

1 FTS835232P Front Dirt Logic 4.0 Resi Coilover (Passenger)

2 FTS810052 Rear Dirt Logic 2.25 Shocks

*FOOTNOTES 3.

NON DUALLY MODELS ONLY.

163. VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.

165. SOME 2017 MODELS MAY REQUIRE A DUAL STEERING STABILIZER FOR OVERSIZED TIRES. ORDER DIRT LOGIC-FTS220512, DIRT LOGIC W/RESI-FTS221162 OR STEALTH-FTS8046.

167. DIESEL MODELS ONLY.

175. VEHICLES W/ FACTORY REAR SWAY BAR MUST ORDER EXTENDED SWAY BAR LINK KIT PART NUMBER FTS22276.
