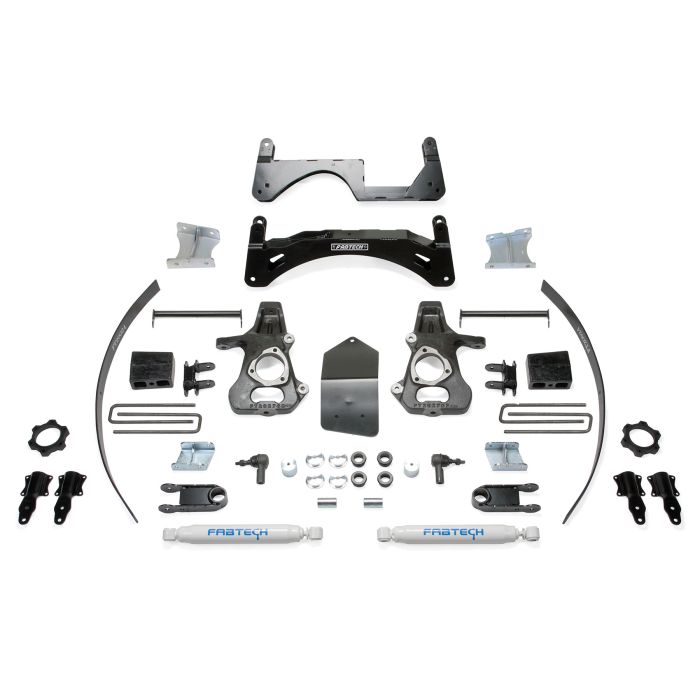

FABTECH 2014-18 GM K1500- 6″ BASIC SYSTEM W/ REAR SHOCKS


More Views

Part# K1068
$1,856.82
customized options

* Required Fields

$1,856.82
1856.82 In Stock
Description

Details

PRODUCT OVERVIEW

DESCRIPTION

Our 6” Basic System has been designed utilizing our industry leading crossmember and spindle technology.

Lift is accomplished by utilizing the factory front Coilover shocks with steel spacers that helps retain the stock ride of the front suspension. Extensive design work was given to the extended length steering knuckles specifically for the Aluminum component version keeping track width near stock and working properly with the Stablitrac® safety functions.

The front differential is relocated with heavy duty brackets while a tightly formed 1/4 ” thick steel skid plate provides protection for offroad use. The rear suspension is upgraded with add a leafs and 5” tall blocks and u bolts. The stock rear shocks are replaced with Performance shocks for increase dampening.

  • Front lower control arm Crossmember forms to bottom of frame without cutting
  • Offset ductile Steering Knuckles keep tires under fenders
  • Includes Crossmember cross tubes to distribute front suspension impact loads
  • No disassembly of factory coilover assembly required for installation
  • Systems compatible with factory Stablitrac®

PERFORMANCE SHOCKS

QTY PART # DESCRIPTION

1 FTS21137 COMPONENT BOX 1

1 FTS21138 COILOVER SPACER KIT

1 FTS21139 COMPONENT BOX 2 – ALUMINUM

2 FTS7240 REAR PERFORMANCE SHOCK

INCLUDED SHOCKS

PERFORMANCE TWIN TUBE SHOCK

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

  • Twin Tube Hydraulic Construction
  • 9/16″ Hardened Chrome Piston Rod
  • 1 3/8″ OD Piston
  • Closed Cell Foam insert
  • High Flow 9 Stage Valving

STEALTH SHOCKS

QTY PART # DESCRIPTION

1 FTS21137 COMPONENT BOX 1

1 FTS21138 COILOVER SPACER KIT

1 FTS21139 COMPONENT BOX 2 – ALUMINUM

2 FTS6240 REAR STEALTH SHOCK

INCLUDED SHOCKS

STEALTH MONOTUBE SHOCK

Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.

Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.

All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.

  • 50mm OD Seamless Steel Body
  • 46mm High Flow Piston for best ride
  • Vehicle specific valving designed for oversized tires
  • Full floating piston separates gas from oil for a consistent ride
  • 14mm Nitrocarb piston rod resists rock chips and rusting
  • All black finish with raised nameplate as a signature of quality

ADDITIONAL INFORMATION

MAKE GM

MODEL K1500 DRIVE 4WD YEAR 2014, 2015, 2016, 2017, 2018

SYSTEMS BASIC SYSTEM

LIFT 6"

TIRES & WHEELS

Tire Size – 35/12.50R17 Wheel Size – 17×8 w/ 5in BS w/minor trimming

Tire Size – 325/65R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming

Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

FOOTNOTES

1. Will not fit models with Factory AutoRide shocks.

8. Will not fit all wheel drive models.

14. Cannot use OEM wheel and tire.

17. Does not fit standard cab.

127. Fits models with Factory Forged Silver Aluminum UCA or Stamped Black Steel UCA.

136. Some vehicles may experience front driveline vibration in 4WD. Order FTS21192 CV Driveshaft Kit if occurs.
