This high quality system has been designed to retain the factory load carrying capacity and ride of the vehicle with minimal parts.
The stock coil springs are retained with angular steel spacers to retain the factory front spring bow. This is an important feature as Chrysler designed the bow to aid in their unique alignment specs and ride quality. Flat spacers do not provide this. The rear coil springs are also retained with steel spacers keeping the weight carrying capacity of the vehicle intact.
A Fabtech exclusive on this system is the steel front bump extensions. They will not blow out like extra long urethane bump stops found in other aftermarket suspensions. No chance of spring and shock damage with the Fabtech steel extensions.
The factory Radius Arms are relocated with heavy duty 1/4” thick steel brackets for proper caster with the 5” lift. Super stout front and rear Track Bar drop brackets center the axles under the vehicle with the new ride height.
Tire/Wheel Fitment K3066, K3066M, K3067DL
Use 37x12.50/R17 tires w/ 17x9 wheels w/ 5” BS w/ minor trimming
Use 37x12.50/R18 tires w/ 18x9 wheels w/ 5” BS w/ minor trimming
Use 37x13.50/R20 tires w/ 20x9.5 wheels w/ 5” BS w/ minor trimming
Use 37x13.50/R22 tires w/ 22x9.5 wheels w/ 5” BS w/ minor trimming

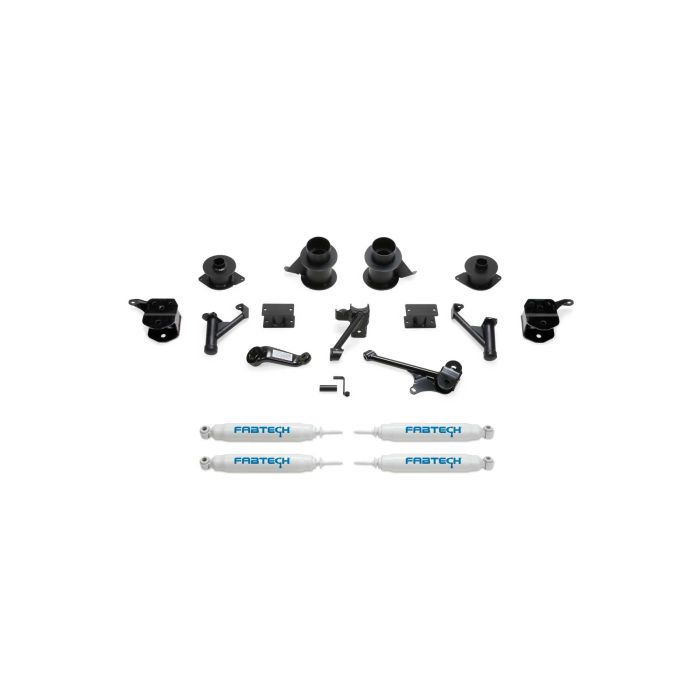

Part # K3066 Description: (Basic)
Performance Shocks Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
- Twin Tube Hydraulic Construction
- 9/16" Hardened Chrome Piston Rod
- 1 3/8" OD Piston
- Closed Cell Foam insert
- High Flow 9 Stage Valving
Part # K3066M Description: (Performance)
Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price. Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires. All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These â€œNitrocarbâ€ piston rods are finished in matte black for a complete â€œblack outâ€ shock package.
- 50mm OD seamless steel body
- 46mm High flow piston for best ride
- Vehicle specific valving designed for oversized tires
- Full floating piston separates gas from oil for a consistent ride
- 14mm Nitrocarb piston rod resists rock chips and rusting
- All black finish with raised nameplate as a signature of quality
Part # K3067DL Description: (Extreme)
Dirt Logic Shocks
Dirt Logic 2.25 Stainless Steel Non Resi Dirt Logic 2.25â€™s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25" OD Stainless Steel Body
- 2.0" OD Billet Aluminum Piston
- 7/8" NitroSteelÂ® Black Piston Rod
- Polyurethane Mounting Ends
- Optional 2.25" OD Aluminum Reservoir w/-6 Stainless Steel O-ring Hose
- Product Data
Component Description: 5" Basic System w/Coil Spacers - 2014-17 Ram 2500 4WD Height x Length x Width (DIM) 10x25x10 Product Data: No Manufacturer No Please choose your option: Clear Product Notes: No Product Requires: No Ship Via: FedEx Weight 22.0000 Product Video N/A Product Video Description N/A Shipping Price: No
