FABTECH 2005-07 6" Basic System - Ford F250 4WD w/ Factory Overload


More Views

Part# K20101
$1,103.59
customized options

* Required Fields

$1,103.59
1103.59 In Stock
Description

Details

PRODUCT OVERVIEW

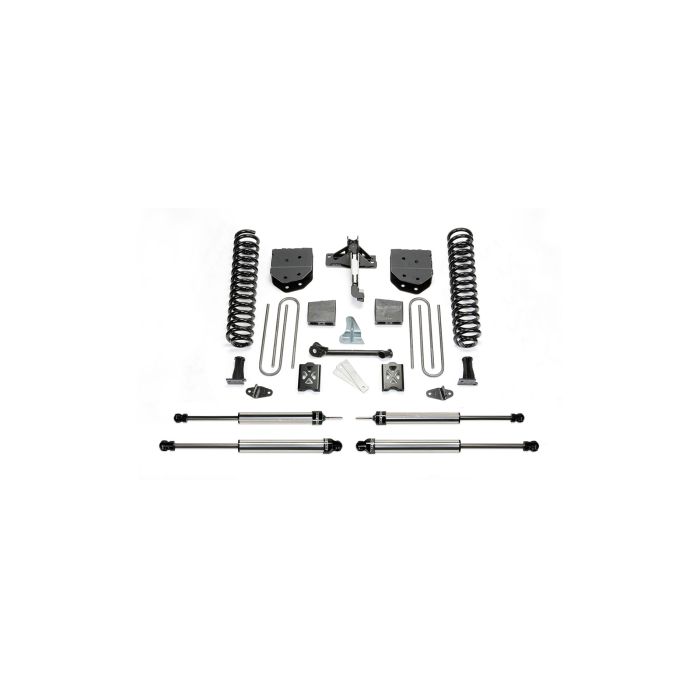

This system provides 6" of lift to clear 315/70R17 tires for the entry level enthusiast. The system utilizes the factory Radius Arms with new heavy duty frame brackets for the budget minded offroader. Lift height is accomplished with 6" Performance Coil Springs in the front and a Block & U-bolt kit in the rear. System includes a Trac Bar relocation bracket, Pitman Arm and Sway Bar brackets.

Kit# K20101, K20101M, K20101DL

Use 315/70R17 tires w/ 17x8 wheels w/ 4 1/2” BS w/ minor trimming

Use 325/65R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming

Oty Part # Description

Perfornance K20101

1 FTS22024BK Coil Box Kit

1 FTS22029BK Component Box

1 FTS22035 Rear Block Kit

2 FTS7188 Front Performance Shocks

2 FTS7266 Rear Performance Shocks

Stealth K20101M

1 FTS22024BK Coil Box Kit

1 FTS22029BK Component Box

1 FTS22035 Rear Block Kit

2 FTS6188 Front Stealth Shocks

2 FTS6063 Rear Stealth Shocks

Dirt Logic K20101DL

1 FTS22024BK Coil Box Kit

1 FTS22029BK Component Box

1 FTS22035 Rear Block Kit

2 FTS810382 Front Dirt Logic 2.25 Non Resi

2 FTS810052 Rear Dirt Logic 2.25 Non Resi

Shipping
Weight: 1.0000
Shipping Price: $200.00
Ship Via: Freight
Los Banos California93635US
×
