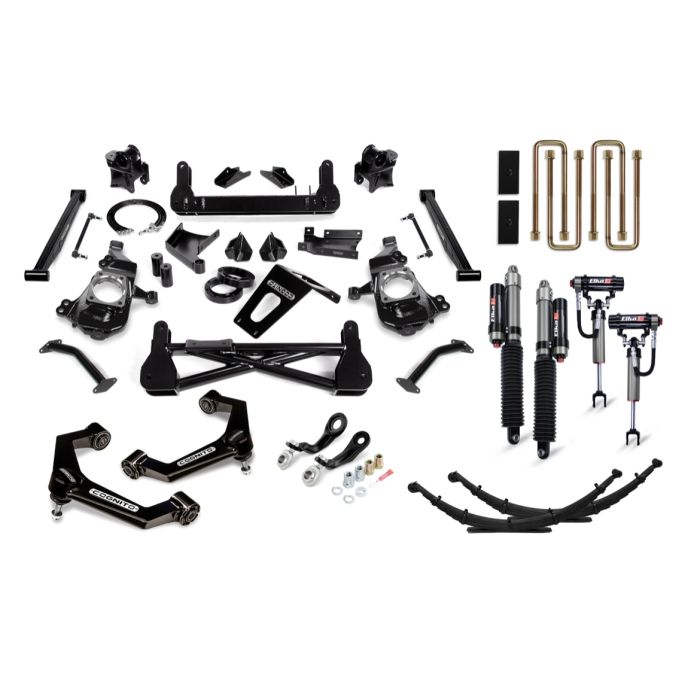

Cognito 7-Inch Elite Lift Kit with Elka 2.5 Reservoir Shocks For 20-23 Silverado/Sierra 2500/3500 2WD/4WD

$9,299.75
SKU
210-P1184

Each Kit Features:

  • Yields 7-inches of front lift
  • Deaver leaf pack with Cognito Block and U-Bolt kit yields 5-inches of rear lift
  • SM Series Ball Joint Upper Control Arms
  • SM Series Compression Struts
  • Stainless Steel extended brake lines
  • Elka 2.5 Inch Reservoir Shocks
  • Maintains Adequate Droop Travel for Superior Ride Quality
  • Allows for up to a 37 x 12.5-Inch Tire on a 10-inch Wide Wheel with 4.75-inch Backspacing
  • 17-Hour DIY Install Time
  • CV Driveline is required if operating in 4WD above 20mph
  • Made in the USA
Details-

We have bundled everything you need in a lift kit for your 20-23 GM 2500/3500 with high quality Cognito components. There is no guesswork. Cognito components are engineered, manufactured, and assembled in the USA.

The Cognito 7-Inch Elite Lift Kit with Elka 2.5 Inch Reservoir Shocks is designed and engineered to offer superior ride quality and corrected CV joint angles.

The Cognito Ball Joint SM Series Upper Control Arms add style, function, and performance to your vehicle by correcting the Ball Joint angle for lifted and leveled applications and improving the allowable droop travel for a better ride quality. The control arm kit features boxed sheet metal arms that are welded, and powder coated semi-gloss black. Pre-installed maintenance free ball joints and pivot bushings are included.

The Cognito Pitman and Idler Arm Support Kit: Pitman and Idler arms have been an inherent wear problem within the steering systems of Chevy and GMC trucks and SUVs for decades. The Cognito PISK (Pitman and Idler Arm Support Kit) replace the problem components that plague factory and aftermarket steering systems on several models and years of GM trucks and SUVs.

The Elka 2.5 shocks feature Dual Speed Compression adjustment and provide better attenuation of vibration, leading to major noise reduction in the cabin (much less squeak and rattle), damping characteristics optimized for each truck and setup, providing a smoother ride. Increased comfort in both on road and off-road conditions, especially over washboard and square-edge impacts, more stable and more predictable handling, reduced front-end diving when cornering or braking reduced rear-end bucking and lifting, and increased damping and spring rate for better handling when towing or loading truck.

The Deaver spring is a complete replacement of the OEM spring, and is arched for 4-Inch over stock rear lift height while maintaining an excellent ride quality via being made from high quality spring steel, a higher leaf count with thinner leaf material for a more compliant ride.

The Cognito 1-inch Block and U-Bolt Kit includes a 1-inch tall powder coated semi-gloss black steel blocks and heavy-duty zinc plated U-bolts.

These improvements are accomplished through application of Cognito's innovative, patented design, by providing additional support to the vehicle's pitman and idler arms, which eliminate the forward and rearward movement of the center-link.



Compatibility-
Year Make Model Sub-Model
2020-2023 GMC Sierra 3500 HD SLT
2020-2023 GMC Sierra 3500 HD SLE
2023 GMC Sierra 3500 HD Pro
2020-2023 GMC Sierra 3500 HD Denali
2020-2023 GMC Sierra 3500 HD AT4
2020-2023 GMC Sierra 2500 HD SLT
2020-2023 GMC Sierra 2500 HD SLE
2023 GMC Sierra 2500 HD Pro
2020-2023 GMC Sierra 2500 HD Denali
2020-2023 GMC Sierra 2500 HD AT4
2020-2023 Chevrolet Silverado 3500 HD WT
2020-2023 Chevrolet Silverado 3500 HD LTZ
2020-2023 Chevrolet Silverado 3500 HD LT
2020-2023 Chevrolet Silverado 3500 HD High Country
2020-2023 Chevrolet Silverado 3500 HD Base
2020-2023 Chevrolet Silverado 2500 HD WT
2020-2023 Chevrolet Silverado 2500 HD LTZ
2020-2023 Chevrolet Silverado 2500 HD LT
2020-2023 Chevrolet Silverado 2500 HD High Country
2020-2023 Chevrolet Silverado 2500 HD Custom
2020-2022 GMC Sierra 3500 HD Base
2020-2022 GMC Sierra 2500 HD Base
2020 GMC Sierra 3500 HD
2020 GMC Sierra 2500 HD
