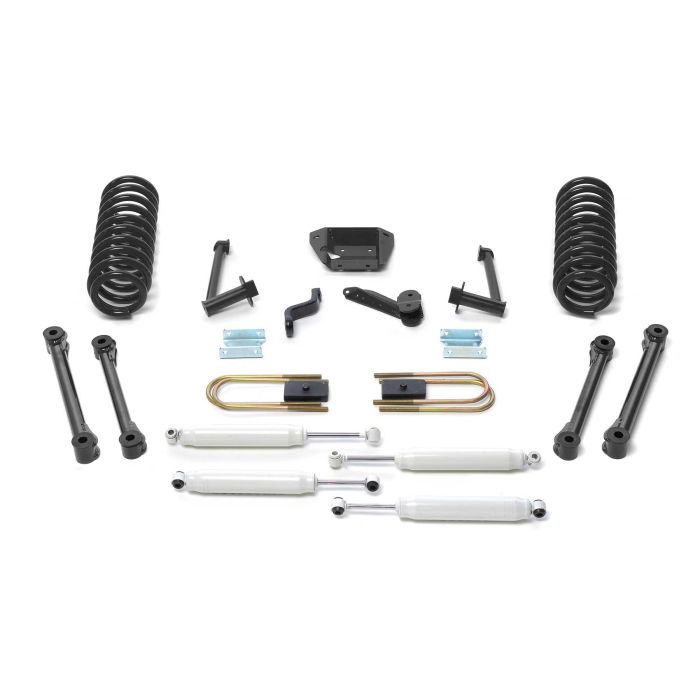

FABTECH 2006-07 DODGE 2500 / 3500 4WD 5.9L DIESEL-6″ PERFORMANCE SYSTEM W/ SHOCKS

PRODUCT OVERVIEW

DESCRIPTION

OTY PART # DESCRIPTION

1 FTS23017BK COMPONENT BOX

1 FTS23020BK COIL SPRING BOX

1 FTS93003 TRANS BRACKET

2 FTS7189 FRONT PERFORMANCE SHOCKS

2 FTS7266 REAR PERFORMANCE SHOCKS

SHOCKS INCLUDED

PERFORMANCE TWIN TUBE SHOCK

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

• Twin Tube Hydraulic Construction
• 9/16″ Hardened Chrome Piston Rod
• 1 3/8″ OD Piston
• Closed Cell Foam insert
• High Flow 9 Stage Valving

STEALTH SHOCKS

OTY PART # DESCRIPTION

1 FTS23017BK COMPONENT BOX

1 FTS23020BK COIL SPRING BOX

1 FTS93003 TRANS BRACKET

2 FTS6189 FRONT STEALTH SHOCKS

2 FTS6063 REAR STEALTH SHOCKS

INCLUDED SHOCKS

STEALTH MONOTUBE SHOCK

Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.

• 50mm OD Seamless Steel Body
• 46mm High Flow Piston for best ride
• Vehicle specific valving designed for oversized tires
• Full floating piston separates gas from oil for a consistent ride
• 14mm Nitrocarb piston rod resists rock chips and rusting
• All black finish with raised nameplate as a signature of quality

DIRT LOGIC SHOCKS

OTY PART # DESCRIPTION

1 FTS23017BK COMPONENT BOX

1 FTS23020BK COIL SPRING BOX

1 FTS93003 TRANS BRACKET

2 FTS810722 FRONT DIRT LOGIC 2.25 NON RESI

2 FTS810532 REAR DIRT LOGIC 2.25 NON RESI

INCLUDED SHOCKS

DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.25″ OD Stainless Steel Body
• 2.0″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® Black Piston Rod
• Polyurethane Mounting Ends

TIRES & WHEELS

• Tire Size – 37/12.50R17 Wheel Size – 17×9 w/ 5in BS w/minor trimming
• Tire Size – 37/13.50R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
• Tire Size – 37/13.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

ADDITIONAL INFORMATION

SYSTEMS PERFORMANCE SYSTEM

MODEL 2500, 3500

MAKE DODGE

DRIVE 4WD

LIFT 6"

YEAR 2006, 2007

FOOTNOTES

3. Non dually models only.
20. Does not fit standard cab models.
56. Fits automatic transmission only.
