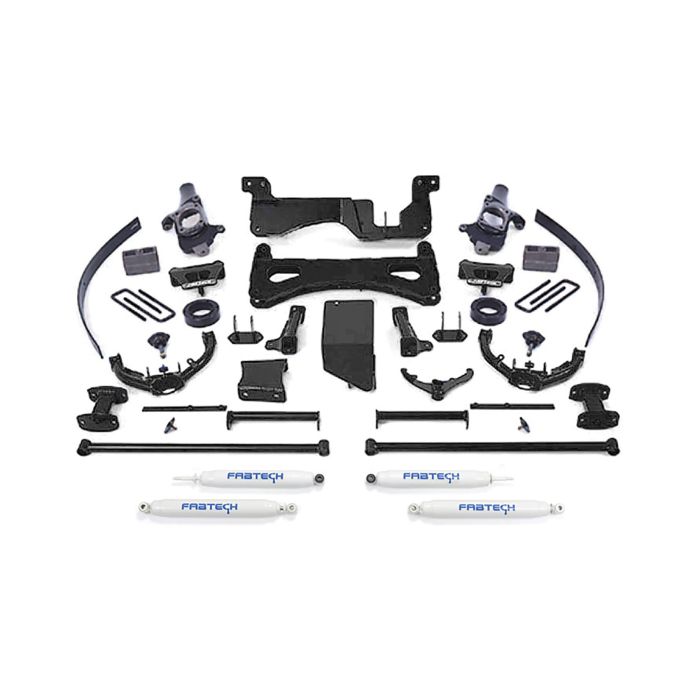

FABTECH 2007-08 GM C/K2500 / C/K3500HD-8″ PERFORMANCE SYSTEM W/ SHOCKS
PRODUCT OVERVIEW
DESCRIPTION
The 8" Performance Suspension System is accomplished via one-piece cast drop down steering knuckles attaching to heavy-duty 1/4" thick, high arched lower control arm crossmembers with tubular upper control arms. Fabtech’s combination of steering knuckle, high arched crossmembers and upper control arms provides an excellent ride quality with high ground clearance. This system will provide a true 8 inches of lift without adjustment to the torsion bars allowing the use of 37" tall tires. The front differential is properly relocated to eliminate front driveshaft vibration on 2001-06 vehicles with the stock driveshaft. On late model 2007-08 vehicles with Magna 1625 transfer cases the system requires the use of a CV front driveshaft to address high speed 4WD use. New tubular upper control arms fit into the stock frame pockets using urethane bushings. Upper control arms include double shock mounting tabs for integration with Fabtech’s optional front dual shock hoop system. The front suspension is completed with an differential skid plate, tubular crossmember supports and impact struts while the torsion bar drop down brackets properly align the torsion bars to the relocated stock lower control arms. The rear suspension is lifted using a 4" block kit with 2" add a leafs. The system is completed with rear bump stop brackets and a rear driveshaft carrier bearing drop bracket.
- Heavy Duty 1/4" Thick, High Arched Crossmember
- Front Differential Skid Plate
- Ductile Iron Steering Knuckles
- New Tubular Upper Control Arms
- Torsion Bar Drop Brackets
- Impact Struts
- Billet Sway Bar End Links
- Rear Add-a-leaf
- Rear Block & U-bolt Kit
PERFORMANCE SHOCKS
QTY PART # DESCRIPTION
1 FTS21068BK COMPONENT BOX 1
1 FTS21012BK COMPONENT BOX 2
1 FTS21013BK COMPONENT BOX 3
2 FTS7192 FRONT PERFORMANCE SHOCKS
2 FTS7266 REAR PERFORMANCE SHOCKS
INCLUDED SHOCKS
PERFORMANCE TWIN TUBE SHOCK
Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
- Twin Tube Hydraulic Construction
- 9/16″ Hardened Chrome Piston Rod
- 1 3/8″ OD Piston
- Closed Cell Foam insert
- High Flow 9 Stage Valving
STEALTH SHOCKS
QTY PART # DESCRIPTION
1 FTS21068BK COMPONENT BOX 1
1 FTS21012BK COMPONENT BOX 2
1 FTS21013BK COMPONENT BOX 3
2 FTS6192 FRONT STEALTH SHOCKS
2 FTS6063 REAR STEALTH SHOCKS
INCLUDED SHOCKS
STEALTH MONOTUBE SHOCK
Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.
Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.
All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.
- 50mm OD Seamless Steel Body
- 46mm High Flow Piston for best ride
- Vehicle specific valving designed for oversized tires
- Full floating piston separates gas from oil for a consistent ride
- 14mm Nitrocarb piston rod resists rock chips and rusting
- All black finish with raised nameplate as a signature of quality
DIRT LOGIC SHOCKS
QTY PART # DESCRIPTION
1 FTS21068BK COMPONENT BOX 1
1 FTS21012BK COMPONENT BOX 2
1 FTS21013BK COMPONENT BOX 3
2 FTS810202 FRONT DIRT LOGIC 2.25 NON RESI
2 FTS810212 REAR DIRT LOGIC 2.25 NON RESI
INCLUDED SHOCKS
DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25″ OD Stainless Steel Body
- 2.0″ OD Billet Aluminum Piston
- 7/8″ NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
TIRES & WHEELS
Tire Size – 37/12.50R17 Wheel Size – 17×9 w/ 4 5/8in BS w/minor trimming
Tire Size – 37/14.00R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
Tire Size – 37/13.50R20 Wheel Size – 20×10 w/ 5in BS w/minor trimming
ADDITIONAL INFORMATION
MAKE GM
MODEL C2500HD, C3500HD, K2500HD, K3500HD
DRIVE 2WD, 4WD
YEAR 2007, 2008
SYSTEMS PERFORMANCE SYSTEM
LIFT 8"
FOOTNOTES
3. Non dually models only.
10. Requires welding, exhaust, and possible front drive shaft mods.
12. Does not fit models with Quadrasteer.
14. Can not use OEM wheel and tire.
15. Will experience some loss of turning radius.
21. Front Driveshaft modification required or order CV Driveshaft (FTS91004).
INSTRUCTIONS
