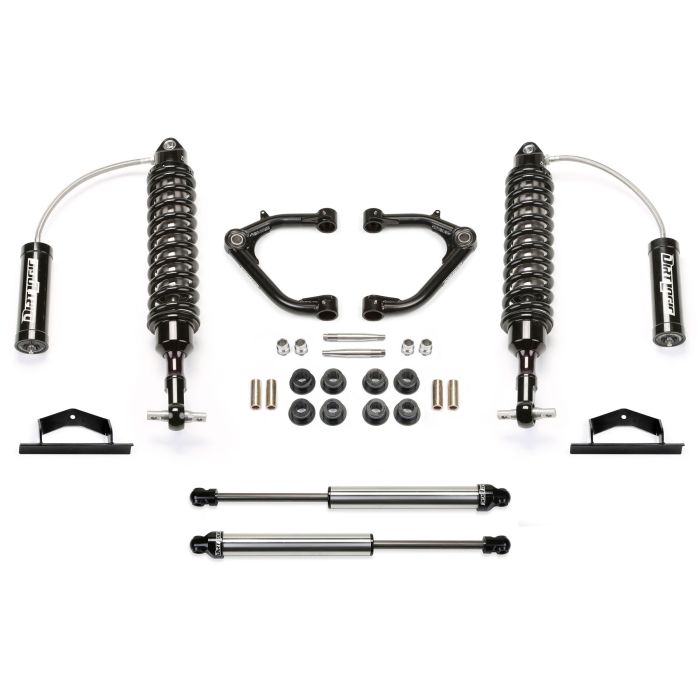

FABTECH 2007-18 GM C/K1500- 2″ UNIBALL UCA SYSTEM W/ FRONT DIRT LOGIC 2.5 COILOVER RESI & REAR DIRT LOGIC SHOCKS

DESCRIPTION

New upper control arms eliminate upper ball joint w/ super strong 1" ID Stainless American Uniball. These arms are direct replacements for factory arms on suspensions that require additional strength. Additional caster is built into arms for greater align ability to help with problematic leveling kit alignments. The chromoly tubing reduces flex found in stock arms for more positive road feel. 17-4 Stainless Steel Heat treated Uniball pin fits into factory ball joint taper without modification to the spindle for easy return to stock feature. Gain increased wheel travel with Dirt Logic 2.5 Resi Coilover shocks

• Upper Control Arms Built With Same Materials Found On Trophy Trucks
• .120" Wall 4130 Chromoly Tubing. 1.50" OD
• .250" wall DOM Bushing Barrels
• 1" ID Stainless Steel American Uniball
• 17-4 Stainless Misalignments
• Heat Treated 17-4 Stainless Steel Tapered Uniball Pins

QTY PART # DESCRIPTION

1 FTS21128 UNIBALL UPPER CONTROL ARMS

1 FTS21179 FRONT DIRT LOGIC 2.5 COILOVERS W/RESI

2 FTS810322 REAR DIRT LOGIC 2.25 NON RESI

INCLUDED SHOCKS

FRONT DIRT LOGIC 2.5 RESI COILOVER

From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.

• 2.5″ OD Stainless Steel Body
• 2.25″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® Black Piston Rod
• Cold Wound Coil Springs
• Adjustable Coilover Construction
• 5/8″ Spherical Ball Mounting Ends
• 2.50″ OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose

REAR DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.25″ OD Stainless Steel Body
• 2.0″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® Black Piston Rod
• Polyurethane Mounting Ends

TIRES & WHEELS

Tire Size – 295/70R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming

Tire Size – 275/65R18 Wheel Size – 18×8 w/ 4 1/2in BS w/minor trimming

Tire Size – 285/55R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

ADDITIONAL INFORMATION

MAKE GM

MODEL C1500, K1500

DRIVE 2WD, 4WD

YEAR 2007, 2008, 2009, 2010, 2011, 2012, 2013

SYSTEMS UNIBALL UCA SYSTEM

LIFT 2"

FOOTNOTES

1. Will not fit models with Factory AutoRide shocks.

8. Will not fit all wheel drive models.

14. Cannot use OEM wheel and tire.

17. Does not fit standard cab.

128. Fits models with factory Forged Black Steel Upper Control Arm.
