FABTECH 2008-16 Ford F250 4WD- 8″ BASIC SYSTEM SHOCKS- w/Factory Overload- Add a Leaf & Block
PRODUCT OVERVIEW
DESCRIPTION

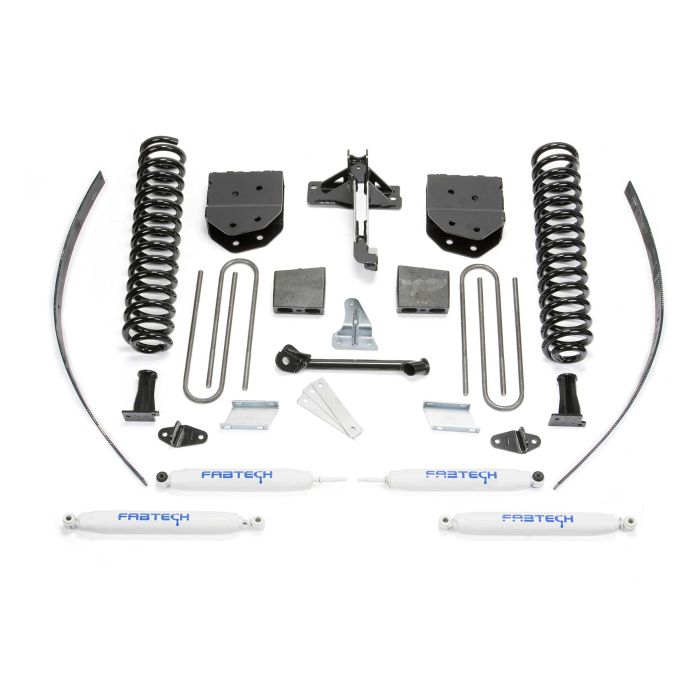

This system utilizes the factory Radius Arms with new heavy duty frame brackets for the budget minded offroader. Lift height is accomplished with Fabtech Performance Coil Springs in the front and a Block and Add-a-leaf kit in the rear. Also included are a Trac Bar relocation bracket, Pitman Arm and Sway Bar brackets.
- Fabtech Front Coil Springs
- Trac Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Add-a-Leaf
- Rear Block & U-bolt Kit
OTY PART # DESCRIPTION
PERFORMANCE
1 FTS22025BK COIL BOX KIT
1 FTS22138 COMPONENT BOX
1 FTS22105 REAR BLOCK & ADD-A-LEAF
KIT 2 FTS7189 FRONT PERFORMANCE SHOCKS
2 FTS7266 REAR PERFORMANCE SHOCKS
STEALTH
1 FTS22025BK COIL BOX KIT
1 FTS22138 COMPONENT BOX
1 FTS22105 REAR BLOCK & ADD-A-LEAF KIT
2 FTS6189 FRONT STEALTH SHOCKS
2 FTS6063 REAR STEALTH SHOCKS
DIRT LOGIC
1 FTS22025BK COIL BOX KIT
1 FTS22138 COMPONENT BOX
1 FTS22105 REAR BLOCK & ADD-A-LEAF KIT
2 FTS810392 FRONT DIRT LOGIC 2.25 NON RESI
2 FTS810052 REAR DIRT LOGIC 2.25 NON RESI
FOOTNOTES
27. Front drive shaft modification may be required to clear exhaust on gas mot
ADDITIONAL INFORMATION
8", DRIVE 4WD, MAKE FORD, SYSTEMS BASIC SYSTEM, MODEL F250 YEAR 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
TIRES & WHEELS
- Tire Size – 355/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
- Tire Size – 37/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming
PERFORMANCE TWIN TUBE SHOCK
Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
- Twin Tube Hydraulic Construction
- 9/16″ Hardened Chrome Piston Rod
- 1 3/8″ OD Piston
- Closed Cell Foam insert
- High Flow 9 Stage Valving
STEALTH MONOTUBE SHOCK
Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.
Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.
All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.
- 50mm OD Seamless Steel Body
- 46mm High Flow Piston for best ride
- Vehicle specific valving designed for oversized tires
- Full floating piston separates gas from oil for a consistent ride
- 14mm Nitrocarb piston rod resists rock chips and rusting
- All black finish with raised nameplate as a signature of quality
DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25″ OD Stainless Steel Body
- 2.0″ OD Billet Aluminum Piston
- 7/8″ NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
INSTRUCTIONS
PDF DOWNLOADS
Component Description: | FABTECH 2008-16 Ford F250 4WD- w/Factory Overload- Add a Leaf & Block 8″ BASIC SYSTEM W/ PERFORMANCE SHOCKS 8″ BASIC SYSTEM W/ STEALTH SHOCKS 8″ BASIC SYSTEM W/ DIRT LOGIC SHOCKS |
---|---|
