FABTECH 2011-16 Ford F250 4WD-6″ RADIUS ARM SYSTEM W/DIRT LOGIC 4.0 COILOVERS & REAR DIRT LOGIC SHOCKS

PRODUCT OVERVIEW

DISCRIPTION

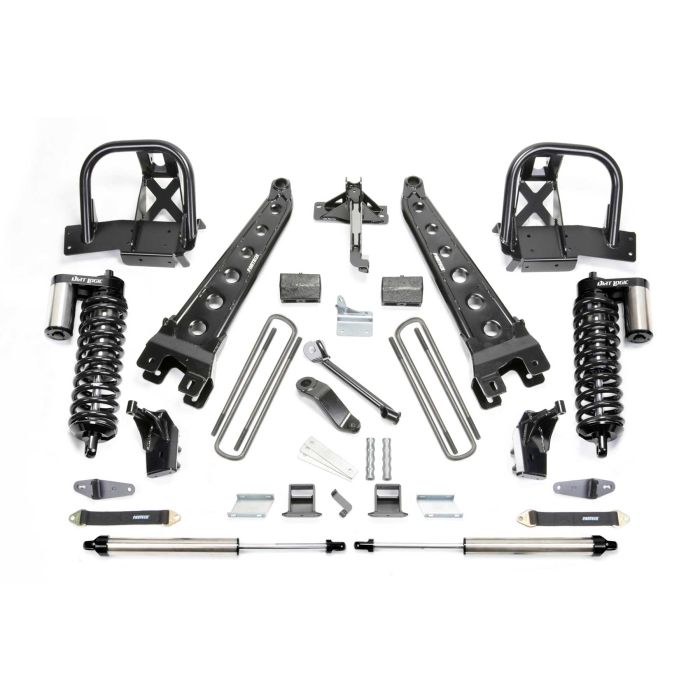

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift includes Dirt Logic 4.0 Coilovers. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift is a block & u-bolt kit. Fabtech Replacement Radius Arms Front Dirt Logic 4.0 Coilovers Trac Bar Relocation Bracket Sway Bar Drop Brackets Pitman Arm Rear Block & U-bolt Kit

OTY PART # DESCRIPTION

• 1 FTS22139 COMPONENT BOX 1
• 1 FTS22143 COMPONENT BOX 2
• 2 FTS835001 FRONT DIRT LOGIC 4.0 COILOVER
• 1 FTS22101 REAR BLOCK KIT
• 2 FTS810051 REAR DIRT LOGIC 2.25 NON RESI

FOOTNOTES

27. Front drive shaft modification may be required to clear exhaust on gas moto

ADDITIONAL INFORMATION

DRIVE 4WD, LIFT 6", SYSTEMS RADIUS ARM SYSTEM, MODEL F250 MAKE FORD YEAR 2011, 2012, 2013, 2014, 2015, 2016

TIRES & WHEELS

• Tire Size – 315/70R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming
• Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
• Tire Size – 35/12.50R20 Wheel Size – 20×10 w/ 5in BS w/minor trimming

FRONT DIRT LOGIC 4.0 PIGGY BACK RESI COILOVER

The Dirt Logic 4.0 provides the ultimate in hardcore offroad dampening capacity with superior highway comfort in a big package. This massive high end shock is designed for full size vehicles that required the biggest and best Coilover shock in a bolt on configuration. Nothing else comes close.

• 4.0″ OD Body
• 3 5/8″ OD Billet Aluminum Piston
• 1 1/4″ Piston Rod
• Adjustable Coilover Construction
• 3/4″ Spherical Ball MountingEnds

REAR DIRT LOGIC 2.25 SHOCK Dirt Logic

2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.25″ OD Body
• 2.0″ OD Billet Aluminum Piston
• 7/8″ Piston Rod
• Polyurethane Mounting Ends
