FABTECH 2011-16 FORD F250 4WD- 8″ 4 LINK SYSTEM W/ FRONT DIRT LOGIC 4.0 RESI COILOVERS & REAR DIRT LOGIC 2.25 SHOCKS
Fabtech’s 4 Link Conversion system for the Ford Super Duty has been designed to provide improved on road performance with the ability to tackle the most rugged offroad terrain. This high end system is a bolt on replacement to the factory Radius Arm suspension and comes with everything needed to convert to a 4 Link front suspension.
The system will provide less caster change throughout the travel range which benefits on road driving. Offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds.
Included in this system is the massive Dirt Logic 4.0 Coilover Conversion for outstanding damping capacity offroad with a quality on road ride. The Coilover bolts in place of the factory coil spring without removal of the coil spring bucket. The giant 4" diameter aluminum remote reservoir mounts horizontally above the Coilover to allow for full compression travel with oversized tires. The Dirt Logic 4.0 Coilover is the biggest and baddest on the market for the Ford Super Duty.
Fabtech’s 4 Link System has been proven in over 10 years of service in military applications. High quality components with properly designed suspension geometry is the pinnacle of Super Duty suspension systems. System includes a free 5 year 60,000 mile powertrain warranty.

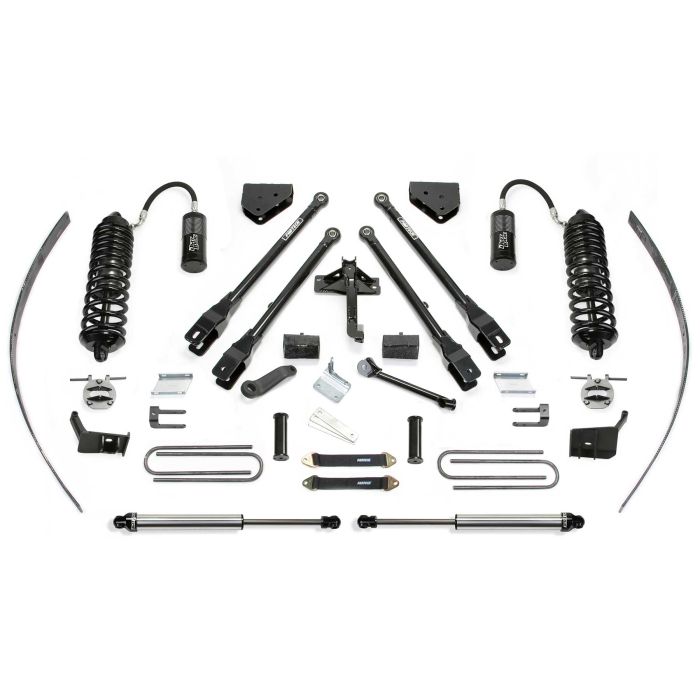

Each Fabtech component is expertly built in house and has specific design features and benefits as listed below.
- Fabtech Heavy Duty Link Arms
- Front Dirt Logic 4.0 Resi Coilovers
- Trac Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Add-a-leaf Kit
- Rear Block & U-bolt Kit
OTY PART # DESCRIPTION
1 FTS22140 COMPONENT BOX 1
1 FTS22080BK COMPONENT BOX 2
1 FTS22105 REAR BOX KIT
1 FTS835236D FRONT DIRT LOGIC 4.0 RESI COILOVER [DRIVER]
1 FTS835236P FRONT DIRT LOGIC 4.0 RESI COILOVER [PASSENGER]
2 FTS810052 REAR DIRT LOGIC 2.25 SHOCK
FRONT DIRT LOGIC 4.0 RESI COILOVER
The Dirt Logic 4.0 provides the ultimate in hardcore offroad dampening capacity with superior highway comfort in a big package. This massive high end shock is designed for full size vehicles that required the biggest and best Coilover shock in a bolt on configuration. Nothing else comes close.
- 4.0″ OD Stainless Steel Body
- 3 5/8″ OD Billet Aluminum Piston
- 1 1/4″ NitroSteel® Black Piston Rod
- Adjustable Coilover Construction
- 3/4″ Spherical Ball Mounting Ends
- 4.0″ OD Aluminum Resi
REAR DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25″ OD Stainless Steel Body
- 2.0″ OD Billet Aluminum Piston
- 7/8″ NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
TIRES & WHEELS
Tire Size – 355/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 37/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming
SYSTEMS RADIUS ARM SYSTEM
YEAR 2011, 2012, 2013, 2014, 2015, 2016
27. Front drive shaft modification may be required to clear exhaust on gas motor.
