FABTECH 2014-18 GM C/K1500- 6″ BASIC SYSTEM GEN II W/ REAR SHOCKS- GEN 2

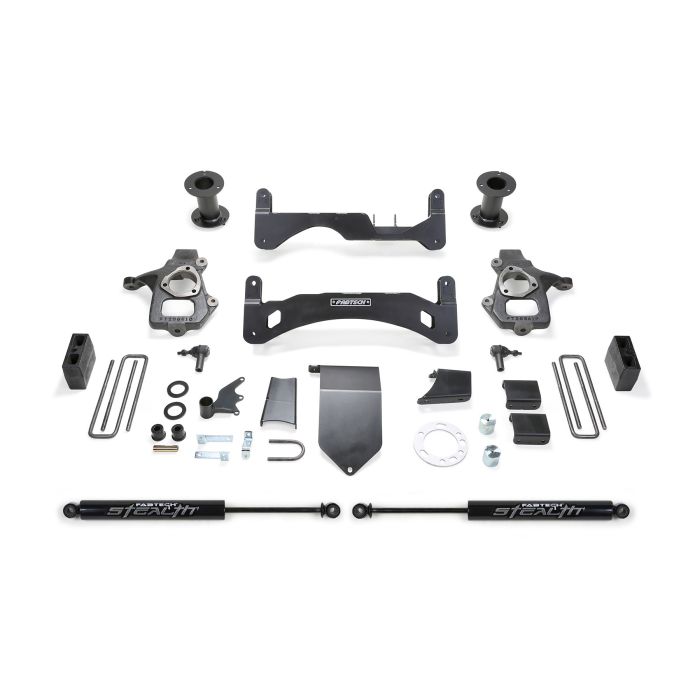

PRODUCT OVERVIEW

DESCRIPTION

This new Gen II system retains the factory track width keeping the tires under the fenders for a clean appearance. With the factory track width retained the front Sway Bar utilizes the stock end links and mounting holes keeping the leverage on the bar proper. There are no CV spacers, impact struts or add a leafs required for installation. The front differential is relocated in a manner so that when driving at higher 4 wheel drive speeds vibration is reduced.

• Heavy Duty 1/4" Thick, High Arched Crossmember
• Front Differential Skid Plate
• Ductile Iron Steering Knuckles .
• Front Coilover Spacers
• Rear Block & U-bolt Kit

PERFORMANCE

QTY PART # DESCRIPTION

1 FTS21170 COMPONENT BOX 1 GEN II

1 FTS21171 COILOVER SPACER KIT

1 FTS21173 COMPONENT BOX 2 GEN II – STEEL

2 FTS7240 REAR PERFORMANCE SHOCK

INCLUDED SHOCKS

PERFORMANCE TWIN TUBE SHOCK

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

• Twin Tube Hydraulic Construction
• 9/16″ Hardened Chrome Piston Rod
• 1 3/8″ OD Piston Closed Cell Foam insert
• High Flow 9 Stage Valving

STEALTH SHOCK

QTY PART # DESCRIPTION

1 FTS21170 COMPONENT BOX 1 GEN II

1 FTS21171 COILOVER SPACER KIT

1 FTS21173 COMPONENT BOX 2 GEN II – STEEL

2 FTS6240 REAR STEALTH SHOCK

INCLUDED SHOCKS

STEALTH MONOTUBE SHOCK

Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.

Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.

All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.

• 50mm OD Seamless Steel Body
• 46mm High Flow Piston for best ride
• Vehicle specific valving designed for oversized tires
• Full floating piston separates gas from oil for a consistent ride
• 14mm Nitrocarb piston rod resists rock chips and rusting
• All black finish with raised nameplate as a signature of quality

ADDITIONAL INFORMATION

MAKE GM

MODEL C1500, K1500

DRIVE 2WD, 4WD

YEAR 2014, 2015, 2016, 2017, 2018

SYSTEMS BASIC SYSTEM

LIFT 6"

TIRES & WHEELS

Tire Size – 35/12.50R17 Wheel Size – 17×8 w/ 5in BS w/minor trimming

Tire Size – 325/65R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming

Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

FOOTNOTES

1. Will not fit models with Factory AutoRide shocks.

8. Will not fit all wheel drive models.

14. Cannot use OEM wheel and tire.

17. Does not fit standard cab.
