FABTECH 2008-10 FORD F350 4WD- 10″ RADIUS ARM SYSTEM W/ DIRT LOGIC 4.0 COILOVERS & REAR DIRT LOGIC SHOCKS
PRODUCT OVERVIEW
DESCRIPTION
SPECIAL SHIPPING REQUIRED This item must be shipped truck freight. Delivery requires a business address with a dock or forklift.

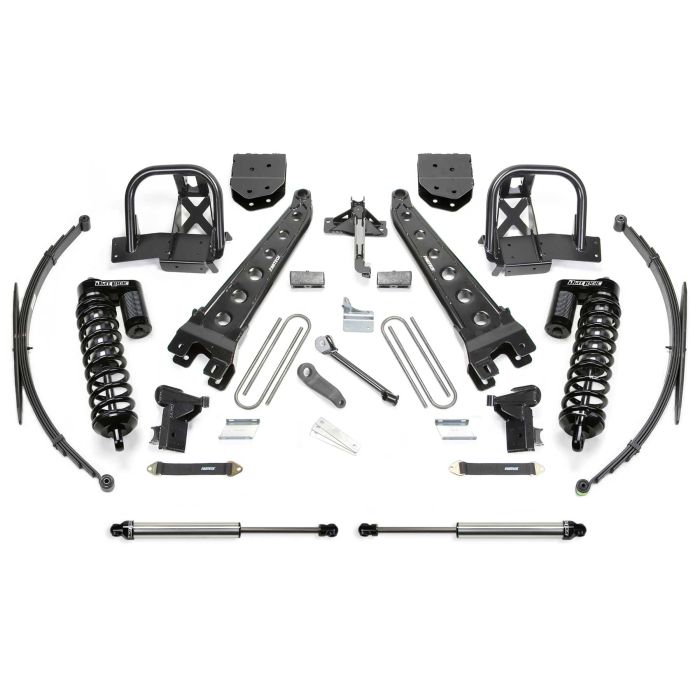

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift includes Dirt Logic 4.0 Coilovers. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift comes from replacement leaf springs and a block & u-bolt kit.
- Fabtech Replacement Radius Arms
- Front Dirt Logic 4.0 Coilovers
- Trac Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Leaf Springs
- Rear Block & U-bolt Kit
OTY PART # DESCRIPTION
1 FTS22100BK COMPONENT BOX 1
1 FTS22094BK COMPONENT BOX 2
2 FTS835012 FRONT DIRT LOGIC 4.0 COILOVER
1 FTS22108 REAR BLOCK & LEAF SPRING KIT
2 FTS810652 REAR DIRT LOGIC 2.25 NON RESI
INCLUDED SHOCKS
FRONT DIRT LOGIC 4.0 PIGGY BACK RESI COILOVER
The Dirt Logic 4.0 provides the ultimate in hardcore offroad dampening capacity with superior highway comfort in a big package. This massive high end shock is designed for full size vehicles that required the biggest and best Coilover shock in a bolt on configuration. Nothing else comes close.
- 4.0″ OD Stainless Steel Body
- 3 5/8″ OD Billet Aluminum Piston
- 1 1/4″ NitroSteel® Black Piston Rod
- Adjustable Coilover Construction
- 3/4″ Spherical Ball Mounting Ends
REAR DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25″ OD Stainless Steel Body
- 2.0″ OD Billet Aluminum Piston
- 7/8″ NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
TIRES & WHEELS
Tire Size – 40/12.50R17 Wheel Size – 17×9 w/ 4 5/8in BS w/minor trimming
Tire Size – 40/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming
ADDITIONAL INFORMATION
LIFT 10"
DRIVE 4WD
MAKE FORD
SYSTEMS RADIUS ARM SYSTEM
MODEL F350
YEAR 2008, 2009, 2010
FOOTNOTES
3. Non dually models.
27. Front drive shaft modification may be required to clear exhaust on gas motor.
29. Rear leaf springs may reduce load carrying capacity.
