FABTECH 2014 Ford F150 4WD- 4″ PERFORMANCE SYSTEM W/ FRONT & REAR SHOCKS- DIRT LOGIC 2.5 COILOVERS

$3,733.51
SKU
K2192DL

PRODUCT OVERVIEW

DESCRIPTION

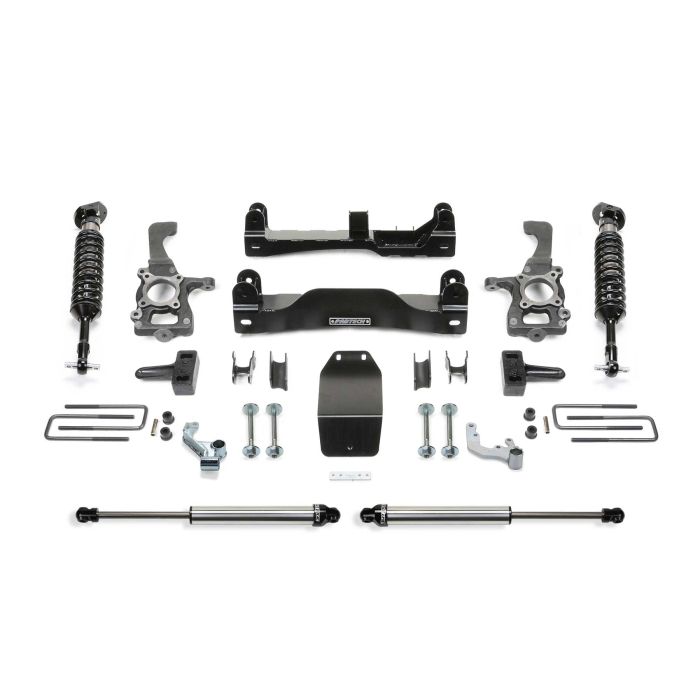

Fabtech’s 4” F150 system utilizes their proven heavy duty construction and design features found in their 6” systems but with less lift and at a much lower price. This 4” System allows use of 35” tall tires and features high arched lower control arm crossmembers constructed of 1/4 “ thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration.

The Performance System features Dirt Logic 2.5 Coilover front shocks and Dirt Logic 2.25 rear shocks for aggressive offroad capabilities with a smooth highway ride.

The 4” System allows use of 33” or 35” tires and is ESC (Electronic Stability Control) and Traction Control compliant.

  • Heavy Duty 1/4″ Thick, High Arched Crossmember
  • Ductile Iron Steering Knuckles
  • Front Dirt Logic 2.5 Coilovers
  • Rear Block & U-bolt Kit

OTY PART # DESCRIPTION

1 FTS22155 COMPONENT BOX 1

1 FTS22157 COMPONENT BOX 2

1 FTS22202 FRONT DIRT LOGIC 2.5 COILOVERS

2 FTS810292 REAR DIRT LOGIC 2.25 NON RESI

FOOTNOTES

14. Cannot use OEM wheel and tire.

20. Does not fit Standard Cab.

123. Will not fit Raptor models.

124. Requires cutting of fenderwell sheetmetal for use with 35” tire

ADDITIONAL INFORMATION

LIFT 4", DRIVE 4WD,  MAKE FORD,  SYSTEMS PERFORMANCE SYSTEM,  MODEL F150,  YEAR 2014.

TIRES & WHEELS

  • Tire Size – 35/12.50R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
  • Tire Size – 295/70R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
  • Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

FRONT DIRT LOGIC 2.5 COILOVER

From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.

  • 2.5″ OD Stainless Steel Body
  • 2.25″ OD Billet Aluminum Piston
  • 7/8″ NitroSteel® Black Piston Rod
  • Eibach coil springs
  • Adjustable Coilover Construction
  • 5/8″ Spherical Ball Mounting Ends

INSTRUCTIONS

PDF DOWNLOADS
