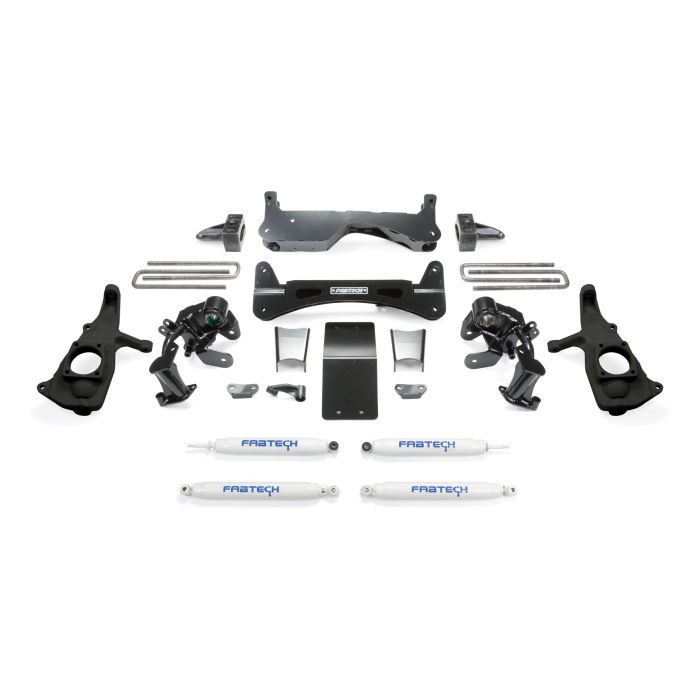

FABTECH 2011-19 GM C/K2500HD- 6″ RTS® SYSTEM W/ SHOCKS

PRODUCT OVERVIEW

DESCRIPTION

Fabtech’s cutting edge RTS® system has now been developed for the all new GM HD platform. The 6” RTS® utilizes a patent pending bracket system that keep the torsion bars raised up, in the stock location. This feature provides superior ground clearance at the frame as there are no torsion bars hanging down to become high centered on or damaged when offroading.

• Heavy Duty 1/4" Thick, High Arched Crossmember
• Front Differential Skid Plate
• Ductile Iron Steering Knuckles
• RTS® Torsion Bar Brackets
• Billet Sway Bar End Links
• Rear Block & U-bolt Kit

PERFORMANCE SHOCKS

QTY PART # DESCRIPTION

1 FTS21092 COMPONENT BOX 1

1 FTS21093 COMPONENT BOX 2

1 FTS21094 COMPONENT BOX 3

2 FTS7338 FRONT PERFORMANCE SHOCKS

2 FTS7333 REAR PERFORMANCE SHOCKS

INCLUDED SHOCKS

PERFORMANCE TWIN TUBE SHOCK

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

• Twin Tube Hydraulic Construction
• 9/16″ Hardened Chrome Piston Rod
• 1 3/8″ OD Piston
• Closed Cell Foam insert
• High Flow 9 Stage Valving

STEALTH SHOCKS

QTY PART # DESCRIPTION

1 FTS21092 COMPONENT BOX 1

1 FTS21093 COMPONENT BOX 2

1 FTS21094 COMPONENT BOX 3

2 FTS6338 FRONT STEALTH SHOCKS

2 FTS6064 REAR STEALTH SHOCKS

INCLUDED SHOCKS

STEALTH MONOTUBE SHOCK

Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.

Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.

All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.

• 50mm OD Seamless Steel Body
• 46mm High Flow Piston for best ride
• Vehicle specific valving designed for oversized tires
• Full floating piston separates gas from oil for a consistent ride
• 14mm Nitrocarb piston rod resists rock chips and rusting
• All black finish with raised nameplate as a signature of quality

DIRT LOGIC SHOCKS

QTY PART # DESCRIPTION

1 FTS21092 COMPONENT BOX 1

1 FTS21093 COMPONENT BOX 2

1 FTS21094 COMPONENT BOX 3

2 FTS810882 FRONT DIRT LOGIC 2.25 NON RESI

2 FTS810892 REAR DIRT LOGIC 2.25 NON RESI

INCLUDED SHOCKS

DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

• 2.25″ OD Stainless Steel Body
• 2.0″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® Black Piston Rod
• Polyurethane Mounting Ends

TIRES & WHEELS

Tire Size – 35/13.50R18 Wheel Size – 18×9 w/ 5 3/4in BS w/minor trimming

Tire Size – 35/13.50R20 Wheel Size – 20×10 w/ 5 3/4in BS w/minor trimming

Tire Size – 355/65R18 Wheel Size – 18×9 w/ 5 3/4in BS w/minor trimming

Tire Size – 37/13.50R20 Wheel Size – 20×10 w/ 5 3/4in BS w/minor trimming

ADDITIONAL INFORMATION

YEAR 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019

MAKE GM

MODEL C2500HD, K2500HD

DRIVE 2WD, 4WD

FOOTNOTES

55. Must use aftermarket 18″ wheels or larger.

60. Fits extended and crew cab models only.
