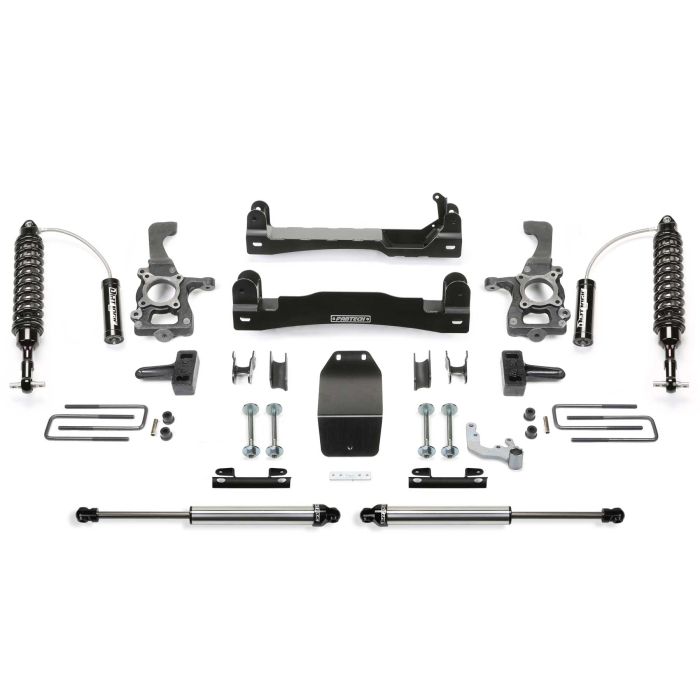

FABTECH- 2015-18 FORD F150 4WD- 4″ PERFORMANCE SYSTEM W/ FRONT DIRT LOGIC 2.5 RESI COILOVERS & REAR DIRT LOGIC SHOCKS
Fabtech Motorsports is a manufacturer of suspension systems and lift kits for Chevy, Ford, Ram, Jeep, Hummer, Nissan, and Toyota. With over 25 years of experience, they lead the industry with extensive research, design technology and rigorous testing that results in the highest performing, finest quality suspension system for the discerning offroad enthusiast
PRODUCT OVERVIEW
DESCRIPTION
Fabtech’s 4” F150 system utilizes their proven heavy duty construction and design features found in their 6” systems but with less lift and at a much lower price. This 4” System allows use of 33” tall tires and features high arched lower control arm crossmembers constructed of 1/4 “ thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration.
The Performance System features front Dirt Logic 2.5 Resi Coilovers and Dirt Logic 2.25 rear shocks for aggressive offroad capabilities with a smooth highway ride.
The 4” System allows use of 33” tires and is ESC (Electronic Stability Control) and Traction Control compliant.
- Heavy Duty 1/4″ Thick, High Arched Crossmember
- Ductile Iron Steering Knuckles
- Front Dirt Logic 2.5 Resi Coilovers
- Rear Block & U-bolt Kit
| OTY | PART # | DESCRIPTION |
|---|---|---|
| 1 | FTS22176 | COMPONENT BOX 1 |
| 1 | FTS22178 | COMPONENT BOX 2 |
| 1 | FTS22185 | FRONT DIRT LOGIC 2.5 COILOVERS W/RESI |
| 2 | FTS810292 | REAR DIRT LOGIC 2.25 NON RESI |
INCLUDED SHOCKS
FRONT DIRT LOGIC 2.5 RESI COILOVER
From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.
- 2.5″ OD Stainless Steel Body
- 2.25″ OD Billet Aluminum Piston
- 7/8″ NitroSteel® Black Piston Rod
- Cold Wound Coil Springs
- Adjustable Coilover Construction
- 5/8″ Spherical Ball Mounting Ends
- 2.50″ OD Aluminum Reservoir w/-8 Stainless Steel O-ring Hose
REAR DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25″ OD Stainless Steel Body
- 2.0″ OD Billet Aluminum Piston
- 7/8″ NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
TIRES & WHEELS
- Tire Size – 33/12.50R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
- Tire Size – 295/70R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
- Tire Size – 33/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
- Tire Size – 295/60R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
ADDITIONAL INFORMATION
| MODEL | |
|---|---|
| SYSTEMS | |
| MAKE | |
| LIFT | |
| DRIVE | |
| YEAR |
| Component Description: | 4″ PERFORMANCE SYSTEM W/ FRONT DIRT LOGIC 2.5 RESI COILOVERS & REAR DIRT LOGIC SHOCKS |
|---|---|
| Please choose your option: | Clear |
| Ship Via: | Freight |
