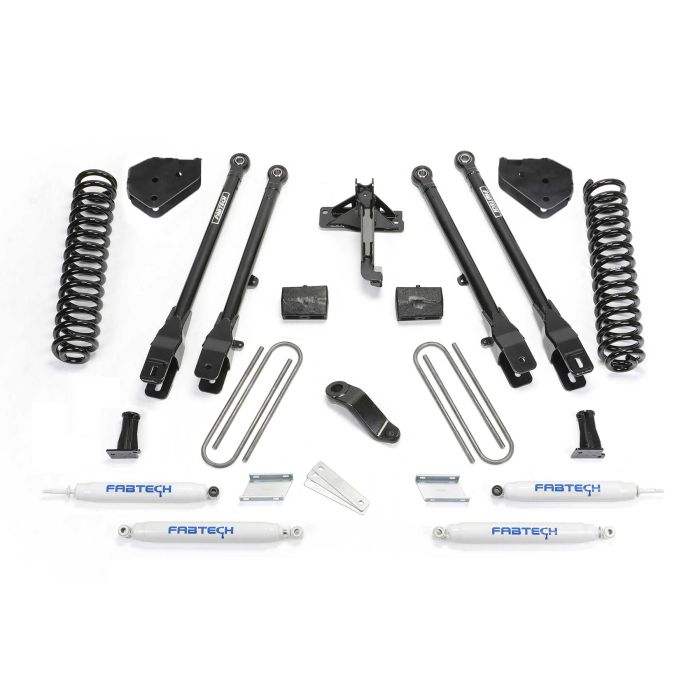

FABTECH 2018 FORD F450 / F550 4WD- 6″ 4 LINK SYSTEM W/ SHOCKS


More Views

Part# K2306
$2,513.59
customized options

* Required Fields

$2,513.59
2513.59 In Stock
Description

Details

PRODUCT OVERVIEW

DESCRIPTION

Fabtech’s 6" Radius Arm system for the Ford F450 and F550 Super Duty is built to handle the on and offroad demands of the truck enthusiast. This vehicle’s suspension is more robust than the Ford F250 and F350 and therefore demands specialty parts only available from Fabtech.

This Radius Arm system is a complete upgrade to the factory suspension and will provide additional strength for use with oversized tires. The design has been proven in over 10 years of service in consumer, commercial and military applications. High quality components with properly designed suspension geometry is what sets this system apart from all other Radius Arm suspensions.

Each Fabtech component has been designed with specific features and benefits that create this quality suspension system. For a greater understand of each these components please see below.

  • Fabtech Replacement Radius Arms
  • Fabtech Front Coil Springs
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Block & U-bolt Kit

PERFORMANCE SHOCKS

QTY PART # DESCRIPTION

1 FTS22251 COIL BOX KIT

1 FTS22221 COMPONENT BOX 1

1 FTS22281 COMPONENT BOX 2

1 FTS22274 REAR BLOCK KIT

2 FTS7188 FRONT PERFORMANCE SHOCKS

2 FTS7266 REAR PERFORMANCE SHOCKS

INCLUDED SHOCKS

PERFORMANCE TWIN TUBE SHOCK

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

  • Twin Tube Hydraulic Construction
  • 9/16″ Hardened Chrome Piston Rod
  • 1 3/8″ OD Piston
  • Closed Cell Foam insert
  • High Flow 9 Stage Valving

STEALTH SHOCKS

QTY PART # DESCRIPTION

1 FTS22251 COIL BOX KIT

1 FTS22221 COMPONENT BOX 1

1 FTS22281 COMPONENT BOX 2

1 FTS22274 REAR BLOCK KIT

2 FTS6188 FRONT STEALTH SHOCKS

2 FTS6063 REAR STEALTH SHOCKS

INCLUDED SHOCKS

STEALTH MONOTUBE SHOCK

Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.

Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.

All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.

  • 50mm OD Seamless Steel Body
  • 46mm High Flow Piston for best ride
  • Vehicle specific valving designed for oversized tires
  • Full floating piston separates gas from oil for a consistent ride
  • 14mm Nitrocarb piston rod resists rock chips and rusting
  • All black finish with raised nameplate as a signature of quality

DIRT LOGIC SHOCKS

OTY PART # DESCRIPTION

1 FTS22251 COIL BOX KIT

1 FTS22221 COMPONENT BOX 1

1 FTS22281 COMPONENT BOX 2

1 FTS22274 REAR BLOCK KIT

2 FTS810382 FRONT DIRT LOGIC 2.25 SHOCK

2 FTS810052 REAR DIRT LOGIC 2.25 SHOCK

INCLUDED SHOCKS

DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

  • 2.25″ OD Stainless Steel Body
  • 2.0″ OD Billet Aluminum Piston
  • 7/8″ NitroSteel® Black Piston Rod
  • Polyurethane Mounting Ends

TIRES & WHEELS

Tire Size – 285/70R19.5 Wheel Size – OE dually wheels

ADDITIONAL INFORMATION

YEAR 2018

MAKE FORD

MODEL F450, F550

DRIVE 4WD

LIFT 6"

SYSTEMS RADIUS ARM SYSTEM

FOOTNOTES

101. Some models may not sit level after install.

INSTRUCTIONS

PDF DOWNLOADS

Shipping
Weight: 1.0000
Shipping Price: $200.00
Ship Via: Freight
