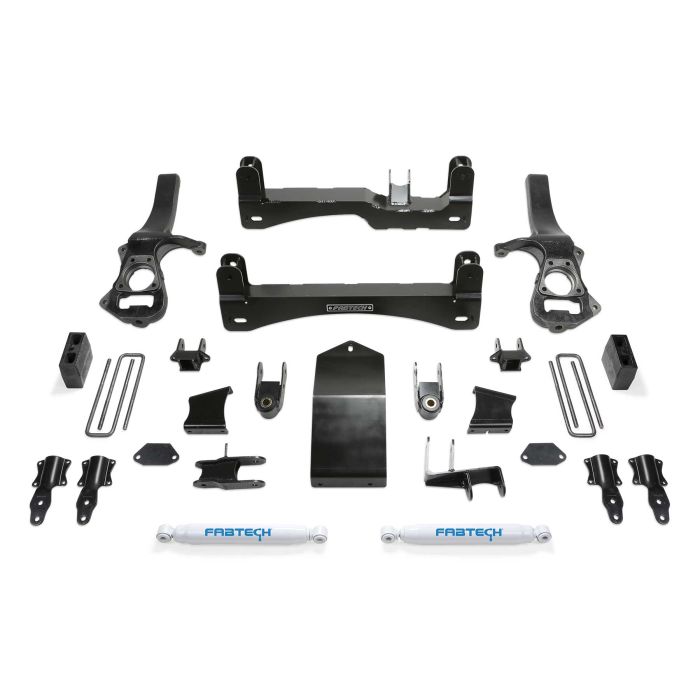

FABTECH 2019-20 GM K1500- 6″ BASIC SYSTEM W/ REAR SHOCKS
PRODUCT OVERVIEW
DESCRIPTION
2019 CHEVY/GMC 1500 SILVERADO/SIERRA 4WD
Fabtech’s Basic System features our world renowned IFS suspension design for the Chevy/GMC 1500 providing excellent drive ability both on and offroad. There is zero bump steer throughout the suspension cycle that helps reduce drive fatigue while improving the overall drive ability of the vehicle. The near stock track width keeps the tires under the fenders for a clean appearance.
Fabtech ‘s proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots. Heavy duty 1/4" thick steel crossmembers feature OE style alignment cam pins that utilize the factory cams for easy adjustment. Triple front diff mounts reposition the differential for vibration free operation at high speed. The factory coilover shocks are relocated from the bottom to allow for full steer while achieving 6” of lift. Rear lift is accomplished with a 5" Block and u-bolt system. Fabtech has addressed all aspects of the suspension for proper wheel travel and lock to lock steering without over cycling. Comes with a free 5 year 60,000 mile Powertrain Warranty.
FEATURES
CROSSMEMBERS
1/4" thick steel lower control arm Crossmembers are arched for maximum ground clearance. The welded box design of these Crossmembers provides additional strength to the front suspension. Retains factory alignment cams for easy adjustment.
STEERING KNUCKLES
Fabtech’s extended length ductile iron Steering Knuckles provide zero bump steer throughout the suspension travel. This provides an enhanced driver experience compared to stock. Near stock track width keeps the tires under the fenders for a clean appearance.
TIE RODS
Oversized tie rods are provided to replace the stock units that are designed to handle oversized tires.
COILOVER SPACERS
The factory Coilovers are relocated with heavy duty lower mounts to lift the vehicle while retaining the stock ride quality.
SKID PLATE
A heavy duty front differential Skid Plate is constructed of 1/4" thick steel to protect the diff from offroad obstacles.
DIFFERENTIAL MOUNTS
Triple Differential Mounts properly reposition the front diff for the precise CV and driveshaft angle to reduce driveline vibration at high speed.
SWAY BAR MOUNTS
1/4" thick steel drop brackets reposition the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range.
REAR BUMP STOP SPACERS
Billet spacers relocate the factory closed cell bump stops to control the travel eliminating over cycling of the suspension.
REAR LIFT BLOCKS
5" tall steel rear lift blocks replace the factory blocks for additional lift without changing the ride quality or load carrying capacity.
REAR U-BOLTS
American made U-Bolts designed to attach the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.
SHOCKS
Extended length of your choice of the Performance twin tube shocks or Stealth monotube shocks in which provide a good highway ride with the ability to handle offroad use.
PERFORMANCE TWIN TUBE SHOCK
QTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS21250 | COMPONENT BOX 1 |
1 | FTS21251 | COMPONENT BOX 2 |
1 | FTS21252 | SHOCK EXTENSION KIT |
2 | FTS7240 | REAR PERFORMANCE SHOCK |
Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.
- Twin Tube Hydraulic Construction
- 9/16″ Hardened Chrome Piston Rod
- 1 3/8″ OD Piston
- Closed Cell Foam insert
- High Flow 9 Stage Valving
STEALTH MONOTUBE SHOCK
QTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS21250 | COMPONENT BOX 1 |
1 | FTS21251 | COMPONENT BOX 2 |
1 | FTS21252 | SHOCK EXTENSION KIT |
2 | FTS6240 | REAR STEALTH SHOCK |
Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price. Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.
- 50mm OD Seamless Steel Body
- 46mm High Flow Piston for best ride
- Vehicle specific valving designed for oversized tires
- Full floating piston separates gas from oil for a consistent ride
- 14mm Nitrocarb piston rod resists rock chips and rusting
- All black finish with raised nameplate as a signature of quality
TIRES & WHEELS
- Tire Size – 35/12.50R18 Wheel Size – 18×9 w/ 5″ BS w/minor trimming
- Tire Size – 295/70R18 Wheel Size – 18×9 w/ 5″ BS w/minor trimming
- Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5″ BS w/minor trimming
- Tire Size – 295/65R20 Wheel Size – 20×9 w/ 5″ BS w/minor trimming
ADDITIONAL INFORMATION
YEAR 2019
MAKE GM
MODEL K1500
DRIVE 4WD
LIFT 6"
SYSTEMS BUDGET SYSTEM
FOOTNOTES
14. Can not use OEM wheel and tire.
79. Fits crew cab, short bed models only.
197. Will not fit models equipped with adaptive ride control.
199. Does not fit GMC AT4 or Chevy Trail Boss models.
