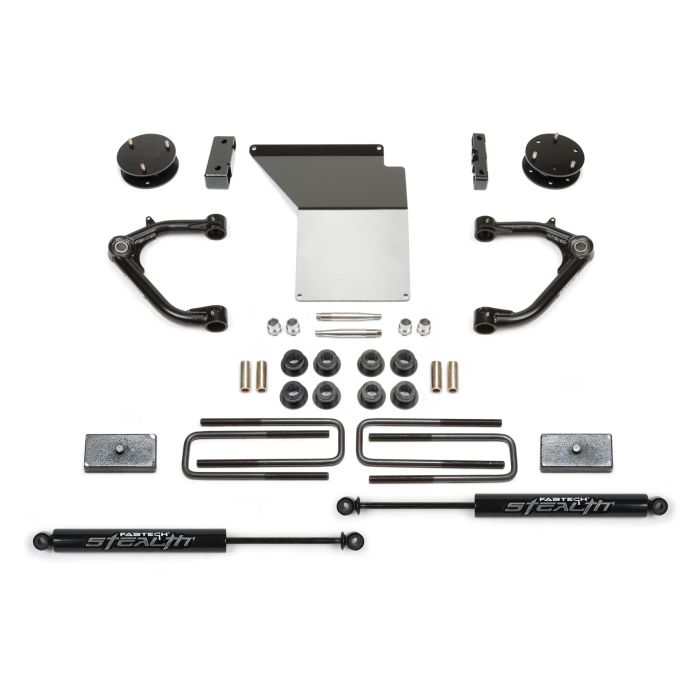

FABTECH 2014-18 GM K1500- 4″ UNIBALL UCA SYSTEM W/ REAR SHOCKS


More Views

Part# K1071
$903.00
customized options

* Required Fields

$903.00
903 In Stock
Description

Details

PRODUCT OVERVIEW

DESCRIPTION

This system offers a mild lift height with easy installation for clearance of 33” tall tires on K1500s.

Lift is accomplished by utilizing the factory front Coilover shocks with steel spacer system that helps retain the stock ride of the front suspension. The stock upper control arms are replaced with high quality tubular Uniball arms that allow unrestricted movement throughout the travel range.

The arms are constructed of top quality material including .120” wall 4130 Chromoly tubing with a 1.50” OD and 1” FK Stainless PTFE Uniballs. These arms are the best on the market for aggressive offroad driving in harsh conditions.

The front differential is relocated to keep CV angles proper with the new lift height while a 1/4” thick steel skid plate provides protection against offroad obstacles.

Rear lift is accomplished with 1 1/2" rear lift block and u-bolts to help level the stance of the vehicles. Performance rear shock absorbers replace the stock units for increased damping.

  • Increased ground clearance
  • Top quality Uniball Upper Control Arms for aggressive offroad use
  • 1” ID American made FK Uniballs with PTFE for ultimate strength
  • Increased fender clearance compared to a Leveling Kit for 33” tall tires
  • Suspension can be restored to stock

PERFORMANCE SHOCKS

INCLUDED SHOCKS

PERFORMANCE TWIN TUBE SHOCK

Fabtech Performance Shocks have been designed to work in conjunction with each of our suspension systems, resulting in superior ride control. Features include high velocity 9-stage valving for excellent dampening capabilities and a closed cell insert to reduce shock fade at high speeds.

  • Twin Tube Hydraulic Construction
  • 9/16″ Hardened Chrome Piston Rod
  • 1 3/8″ OD Piston
  • Closed Cell Foam insert
  • High Flow 9 Stage Valving

STEALTH SHOCKS

INCLUDED SHOCKS

STEALTH MONOTUBE SHOCK

Stealth is the first all black monotube shock absorber, with an identifiable raised metal nameplate, that represents the signature of quality you can rely on for a superior ride at an affordable price.

Stealth monotube shocks are built with a 46mm diameter high flow piston and vehicle specific valving, for a great ride with oversized tires.

All Stealth shock absorbers feature Nitrocarburized piston rods that are superior to chromed rods in durability and corrosion resistance. These Nitrocarb piston rods are finished in matte black for a complete black out shock package.

  • 50mm OD Seamless Steel Body
  • 46mm High Flow Piston for best ride
  • Vehicle specific valving designed for oversized tires
  • Full floating piston separates gas from oil for a consistent ride
  • 14mm Nitrocarb piston rod resists rock chips and rusting
  • All black finish with raised nameplate as a signature of quality

QTY PART # DESCRIPTION

1 FTS21191 COMPONENT BOX W/ STEALTH SHOCKS

DIRT LOGIC SHOCKS

  • Best in class system for aggressive offroad use and good highway ride
  • Increased ground clearance
  • Top quality Uniball Upper Control Arms for aggressive offroad use
  • 1” ID American made FK Uniballs with PTFE for ultimate strength
  • Includes Dirt Logic 2.5 Coilovers for superior damping
  • Increased fender clearance compared to a Leveling Kit for 33” tall tires
  • Suspension can be restored to stock

INCLUDED SHOCKS

FRONT DIRT LOGIC 2.5 COILOVER

From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.

  • 2.5″ OD Stainless Steel Body
  • 2.25″ OD Billet Aluminum Piston
  • 7/8″ NitroSteel® Black Piston Rod
  • Cold Wound Coil Springs
  • Adjustable Coilover Construction
  • 5/8″ Spherical Ball Mounting Ends

REAR DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

  • 2.25″ OD Stainless Steel Body
  • 2.0″ OD Billet Aluminum Piston
  • 7/8″ NitroSteel® Black Piston Rod
  • Polyurethane Mounting Ends

QTY PART # DESCRIPTION

1 FTS21206 COMPONENT BOX W/ DIRT LOGIC SHOCKS

ADDITIONAL INFORMATION

MAKE GM

MODEL K1500

DRIVE 4WD

YEAR 2014, 2015, 2016, 2017, 2018

SYSTEMS UNIBALL UCA SYSTEM

LIFT 4"

TIRES & WHEELS

Tire Size – 33/12.50R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming

Tire Size – 275/65R18 Wheel Size – 18×8 w/ 4 1/2in BS w/minor trimming

Tire Size – 295/55R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

FOOTNOTES

1. Will not fit models with Factory AutoRide shocks.

8. Will not fit all wheel drive models.

14. Cannot use OEM wheel and tire.

17. Does not fit standard cab.

127. Fits models with Factory Forged Silver Aluminum UCA or Stamped Black Steel UCA. DIRT LOGIC ONLY
