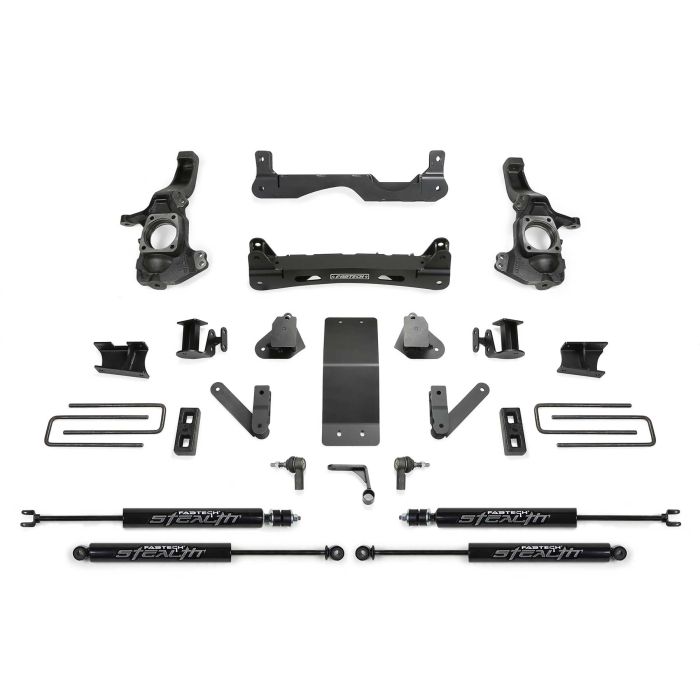

Fabtech 4″ LIFT KIT – STEALTH SHOCKS
2020-24 CHEVY SILVERADO 2500HD | GMC SIERRA 2500HD 4WD
Fabtech’s world renowned IFS suspension design for the GM 2500HD provides excellent drive ability both on and offroad. There is zero bump steer throughout the suspension cycle that helps reduce drive fatigue while improving the overall driveability of the vehicle.
The near stock track width keeps the tires under the fenders for a clean appearance. Fabtech’s proprietary steering knuckle geometry provides excellent lock to lock turning radius to maneuver in tight spots.
Heavy duty 1/4″ thick steel crossmembers feature eccentric style alignment cams for easy adjustment. Triple front diff mounts reposition the differential for vibration free operation at high speed.
Fabtech offers their Stealth shocks with this suspension. They are a monotube shock that will provide a great highway ride with the ability to tackle offroad obstacles.
Fabtech has addressed all aspects of the suspension for proper wheel travel and lock to lock steering without over cycling. Comes with a free 5 year 60,000 mile Powertrain Warranty.
- Zero bump steer throughout travel range for optimum driveability
- Front differential driveline angled for smooth high speed 4WD operation
- Near factory track width keeping tires under fenders for clean appearance
- Fast installation with heavy duty 1/4” thick steel construction throughout
- Free 5 Year 60,000 Mile Powertrain Warranty
1/4" thick steel lower control arm Crossmembers are arched for maximum ground clearance. The welded box design of these Crossmembers provides additional strength to the front suspension. Retains factory alignment cams for easy adjustment.
Fabtech’s extended length ductile iron Steering Knuckles provide zero bump steer throughout the suspension travel. This provides an enhanced driver experience compared to stock. Near stock track width keeps the tires under the fenders for a clean appearance.
Oversized tie rods are provided to replace the stock units that are designed to handle oversized tires.
A heavy duty front differential Skid Plate is constructed of 1/4" thick steel to protect the diff from offroad obstacles.
Heavy duty Differential Mounts properly reposition the front diff for the precise CV and driveshaft angle to reduce driveline vibration at high speed.
SWAY BAR MOUNTS
Heavy duty mounts reposition the front sway bar for on road functionality and no bind for offroad use.
REAR LIFT BLOCKS
New rear lift blocks replace the factory blocks for additional lift without changing the ride quality or load carrying capacity. This block height helps level the truck front to rear.
U-Bolts designed to attach the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.
These extended length monotube shocks have a Nitrocarb piston rod for corrosion resistance and resist rock chipping. Great highway ride with good offroad damping capacity.
|2||FTS6338||FRONT STEALTH SHOCKS|
|2||FTS6019||REAR STEALTH SHOCKS|
– California Prop 65 Warning
14. Can not use OEM wheel and tire.
20. Does not fit standard cab models.
