FABTECH- 17-22 4" Basic System - F250/F350 4WD

PRODUCT OVERVIEW

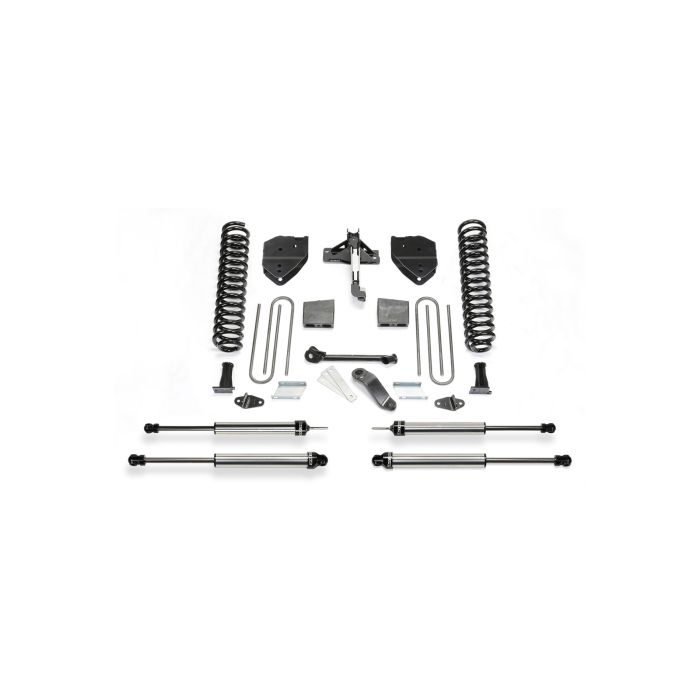

This Basic Drop Bracket system is designed for the budget minded enthusiast. This application utilizes the stock radius arms and comes complete with replacement Coil Springs, a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a Block & U-bolt kit.

This system qualifies for our 5/60 Powertrain Warranty.

Kit# K2214, K2214M, K2214DL

Use 35/12.50R17 tires w/17x9 wheels w/ 4-3/4" BS w/minor trimming

Use 35/12.50R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming

Use 35/12.50R20 tires w/ 20x9 wheels w/ 5” BS w/ minor trimming

Oty Part # Description

Performance K2214

1 FTS22207 Coil Box Kit

1 FTS22213 Component Box

1 FTS22214 Rear Box Kit

2 FTS7236 Front Performance Shocks

2 FTS7266 Rear Performance Shocks

Stealth Shocks

1 FTS22207 Coil Box Kit

1 FTS22213 Component Box

1 FTS22214 Rear Box Kit

2 FTS6236 Front Stealth Shock

2 FTS6063 Rear Stealth Shock

Dirt Logic Shocks  K2214DL

1 FTS22207 Coil Box Kit

1 FTS22213 Component Box

1 FTS22214 Rear Box Kit

2 FTS810962 Front Dirt Logic2.25 Shock

2 FTS810052 Rear Dirt Logic 2.25 Shock

*FOOTNOTE

3. NON DUALLY MODELS ONLY.

165. SOME 2017 MODELS MAY REQUIRE A DUAL STEERING STABILIZER FOR OVERSIZED TIRES. ORDER DIRT LOGIC-FTS220512, DIRT LOGIC W/RESI-FTS221162 OR STEALTH-FTS8046. 167. DIESEL MODELS ONLY.
