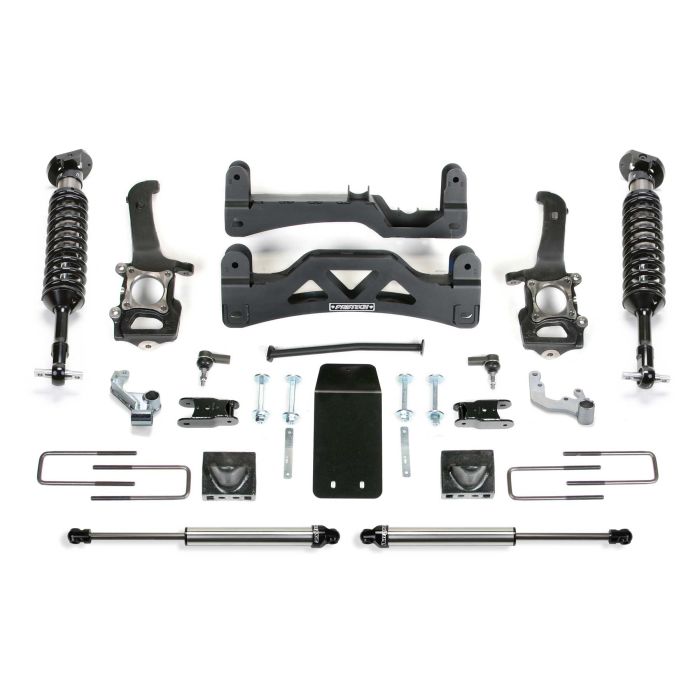

FABTECH 2009-13 FORD F150 4WD- 6″ PERFORMANCE SYSTEM GEN II W/ FRONT DIRT LOGIC 2.5 COILOVERS & REAR DIRT LOGIC SHOCKS

$4,344.29
SKU
K2191DL

PRODUCT OVERVIEW

DESCRIPTION

Our new 2009-13 F150 GEN II system utilizes the proven designs from our 2014 system at an affordable price and fast install for the earlier model trucks.

This system includes heavy duty 1/4″ thick steel lower control arm crossmembers with an integrated front differential skid plate for protection and increased front suspension strength. Fabtech extended length ductile iron steering knuckles allow use of 18″ or 20″ wheels.

The Performance GEN II System comes with Dirt Logic 2.5 Coilovers featuring cold wound coil springs in the front and Dirt Logic 2.25 in the rear for aggressive offroad driving.

  • Heavy Duty 1/4″ Thick, High Arched Crossmember
  • Ductile Iron Steering Knuckles
  • Front Dirt Logic 2.5 Coilovers
  • Rear Block & U-bolt Kit

OTY PART # DESCRIPTION

1 FTS22175 COMPONENT BOX 1

1 FTS22173 COMPONENT BOX 2

1 FTS22198 FRONT DIRT LOGIC 2.5 COILOVERS

2 FTS810292 REAR DIRT LOGIC SHOCKS

INCLUDED SHOCKS

FRONT DIRT LOGIC 2.5 COILOVER

From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.

  • 2.5″ OD Stainless Steel Body
  • 2.25″ OD Billet Aluminum Piston
  • 7/8″ NitroSteel® Black Piston Rod
  • Cold Wound Coil Springs
  • Adjustable Coilover Construction
  • 5/8″ Spherical Ball Mounting Ends

REAR DIRT LOGIC 2.25 SHOCK

Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.

  • 2.25″ OD Stainless Steel Body
  • 2.0″ OD Billet Aluminum Piston
  • 7/8″ NitroSteel® Black Piston Rod
  • Polyurethane Mounting Ends

TIRES & WHEELS

Tire Size – 325/65R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming

Tire Size – 35/13.50R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming

Tire Size – 35/13.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

ADDITIONAL INFORMATION

SYSTEMS PERFORMANCE SYSTEM

MODEL F150

MAKE FORD

DRIVE 4WD

LIFT 6"

YEAR 2009, 2010, 2011, 2012, 2013

FOOTNOTES

14. Can not use OEM wheel and tire.

47. Fits SuperCrew models only.

123. Will not fit Raptor models.
