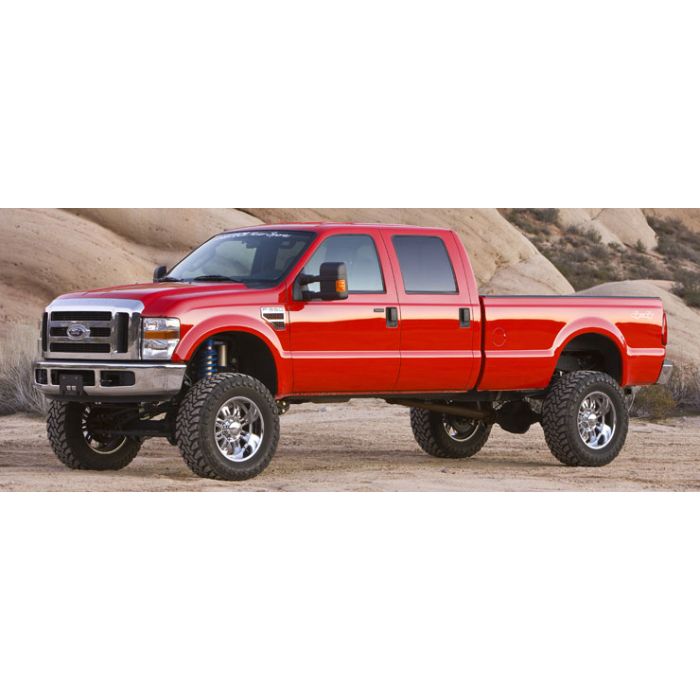

FABTECH 2008-10 8" 4 Link System w/ Dirt Logic SS 4.0 Coilovers & Rear Dirt Logic SS Shocks - Ford F250/F350 4WD



At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" diameter heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our Dirt Logic 4.0 Coilover Shock convesion and is available with rear Dirt Logic Non-Resi or Resi shocks. The system also includes Sway Bar drops, Trac Bar relocation bracket, Pitman Arm, U-bolt kit, and replacement rear Leaf Springs.

Kit# K2068DL

Use 355/65R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming

Use 37/13.50R20 tires w/ 20x10 wheels w/ 4 1/2” BS w/ minor trimming

Oty Part # Description

1 FTS22140 Component Box 1

1 FTS22078BK Component Box 2

1 FTS22080BK Component Box 3

2 FTS835012 Front Dirt Logic 4.0 Coilover

1 FTS22114 Rear Leaf Spring Kit

2 FTS810052 Rear Dirt Logic 2.25 Non Resi


3. Non dually models only.

27. Front drive shaft modification may be required to clear exhaust on gas motor.

29. Rear leaf springs may reduce load carrying capacity.

More Information
Component Description: 8" 4 Link System w/ Dirt Logic SS 4.0 Coilovers & Rear Dirt Logic SS Shocks - 2008-10 Ford F250/F350 4WD
Please choose your option: Clear
Ship Via: Freight
