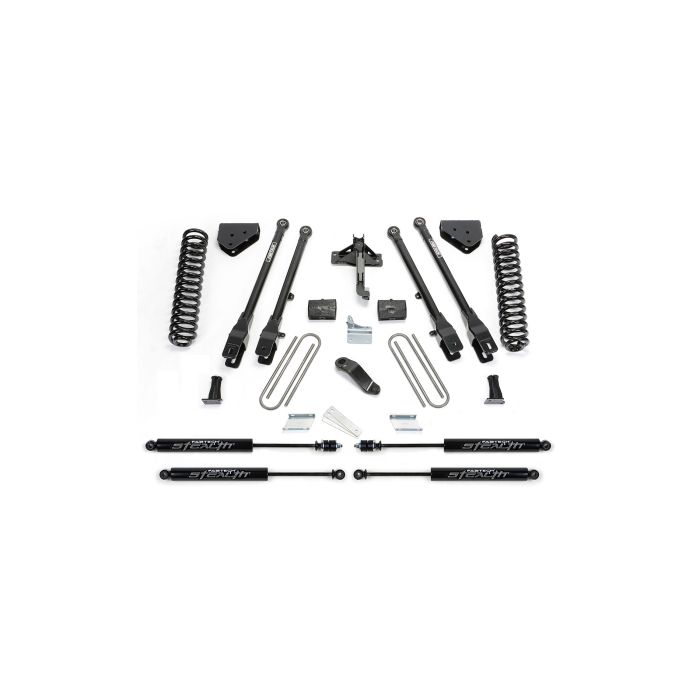

FABTECH 2008-16 6" 4 Link System w/ Performance Shocks -Ford F350 4WD & 2011-13 Ford F450 4WD (8 Lug)

PRODUCT OVERVIEW

For the ultimate in suspension performance for the Super Duty we offer a bolt on 4 Link System that provides unsurpassed articulation and wheel travel. These 2" diameter heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system allows the use of our replacement Coil Springs. The system also includes Sway Bar Drops, Trac Bar relocation bracket, Pitman Arm, and a rear Block & U-Bolt kit.

Kit# K2132, K2132M, K2132DL

Use 315/70R17 tires w/ 17x8 wheels w/ 4 1/2” BS w/ minor trimming

Use 325/65R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming

Use 35/12.50R20 tires w/ 20x9 wheels w/ 5” BS w/ minor trimming

Oty Part # Description

Performance K2132

1 FTS22024BK Coil Box Kit

1 FTS22140 Component Box 1

1 FTS22080BK Component Box 2

1 FTS22103 Rear Block Kit

2 FTS7188 Front Performance Shocks

2 FTS7266 Rear Performance Shocks

Stealth K2132M

1 FTS22024BK Coil Box Kit

1 FTS22140 Component Box 1

1 FTS22080BK Component Box 2

1 FTS22103 Rear Block Kit

2 FTS6188 Front Stealth Shocks

2 FTS6063 Rear Stealth Shocks

Dirt Logic K2132DL

1 FTS22140 Component Box 1

1 FTS22080BK Component Box 2

1 FTS835234D Front Dirt Logic 4.0 Resi Coilover (Driver)

1 FTS835234P Front Dirt Logic 4.0 Resi Coilover (Passenger)

1 FTS22103 Rear Block Kit 2 FTS810052 Rear Dirt Logic 2.25 Shock

*FOOTNOTES

3. Non dually models only.

27. Front drive shaft modification may be required to clear exhaust on gas motor.

170. Vehicle may not sit level due to factory rear options.
