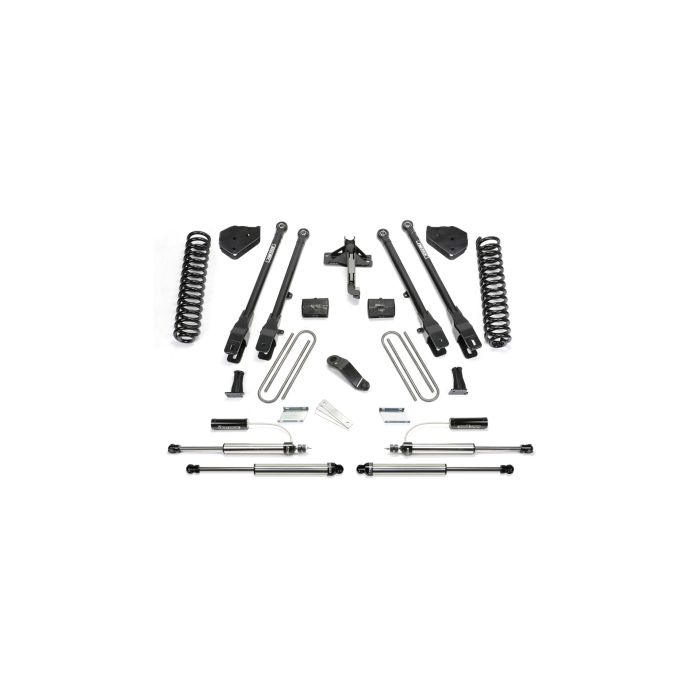

FABTECH - 2017 4" 4 Link System w/ Front Dirt Logic 2.25 Resi Shocks & Rear Dirt Logic 2.25 Shocks - Ford F250/F350 4WD


More Views

Part# K2290DL
$3,214.40
3214.4 In Stock
Description

Details

PRODUCT OVERVIEW

Fabtech’s 4 Link Conversion system for the Ford Super Duty has been designed to provide improved on road performance with the ability to tackle the most rugged offroad terrain. This high end system is a bolt on replacement to the factory Radius Arm suspension and comes with everything needed to convert to a 4 Link front suspension.

The system will provide less caster change throughout the travel range which benefits on road driving. Offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds.

Include with this system is Dirt Logic 2.25 Stainless Steel reservoir shocks in the front and non reservoir shocks in the rear. These Dirt Logic shocks have been ride tuned to the vehicle with the Fabtech Coil Springs and oversized tires for an excellent ride quality both on and offroad.

Fabtech’s 4 Link System has been proven in over 10 years of service in military applications. High quality components with properly designed suspension geometry is the pinnacle of Super Duty suspension systems. System includes a free 5 year 60,000 mile powertrain warranty.

Each Fabtech component is expertly built in house and has specific design features and benefits as listed below.

Link Arms and Brackets

2” OD Heavy wall link arms have 1/4” thick steel brackets on the axle side with adjustable alignment cams to dial in the caster for the new ride height. Fabtech’s legendary 5 Ton joints are used on the frame pivot side for superior strength. The 5 Ton joints have been proven in military use for over 10 years and come with a lifetime warranty against wearing out.

The 4 Link Arms attach to 1/4” thick steel frame brackets that integrate into the factory Radius Arm brackets for a solid mounting of the new suspension. The geometry of the 4 Link arms and frame brackets has been designed to provide an improved highway ride due to reduced caster change and able to tackle rough offroad conditions better than a Radius Arm suspension.

Coil Springs

American made hot wound coils have been designed for a very compliant ride quality both on and offroad. Each coil is preset during the manufacturing process to insure no ride height settling over time. Allows for a 2” increase in wheel travel over stock when used with Fabtech shock absorbers.

Track Bar Bracket

1/4” thick steel bracketry repositions the factory track bar to center the axle under the vehicle with the increased lift height. Super stout box style bracket is designed to eliminate deflection when the track bar moves through its full cycle.

Dropped Pitman Arm

Forged steel construction with high strength material that exceeds the factory specifications. Designed specifically for the Ford Super Duty to work in conjunction with the factory drag link and Fabtech’s Track Bar bracket for proper steering functionality.

Front Bump Stop Brackets

Heavy duty 1/4" thick steel brackets extend the factory bump stop cushions down to eliminate over cycling of the suspension. The bracket’s semi boxed construction can handle the full compression impact of a 7000 Lb. Super Duty.

Sway Bar Brackets

1/4" thick steel drop brackets re-position the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range.

Brake Line Brackets

Re-positions the factory brake lines down on the frame for the new travel range without having to open the brake system. Keeps factory fluid system intact.

Steering Stabilizer Brackets

Retains the stock Ford heavy duty steering stabilizer with a 1/4" thick steel bracket and support brace to help reduce tire shimmy.

Rear Lift Blocks

Cast iron rear lift blocks with an integrated bump stop replaces the stock blocks for additional lift without changing the ride quality of the factory rear suspension or load carrying capacity.

Rear U-Bolts

American made U Bolts designed to attach the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.

This system qualifies for our 5/60 Powertrain Warranty.

Kit# K2290DL

Use 35/12.50R17 tires w/17x9 wheels w/ 4-3/4" BS w/minor trimming

Use 35/12.50R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming

Use 35/12.50R20 tires w/ 20x9 wheels w/ 5” BS w/ minor trimming

Oty Part # Description

1 FTS22207 Coil Box Kit

1 FTS22216 Component Box 1

1 FTS22217 Component Box 2

1 FTS22214 Rear Box Kit

2 FTS800962 Front Dirt Logic 2.25 Resi Shock

2 FTS810052 Rear Dirt Logic 2.25 Shock

*FOOTNOTE 3. Non dually models only.

42. Will not fit gas motors.

165. Some 2017 models may require a dual steering stabilizer for oversized tires. Order Dirt Logic - FTS220512,Dirt Logic w/resi - FTS221162, Stealth - FTS8046.
