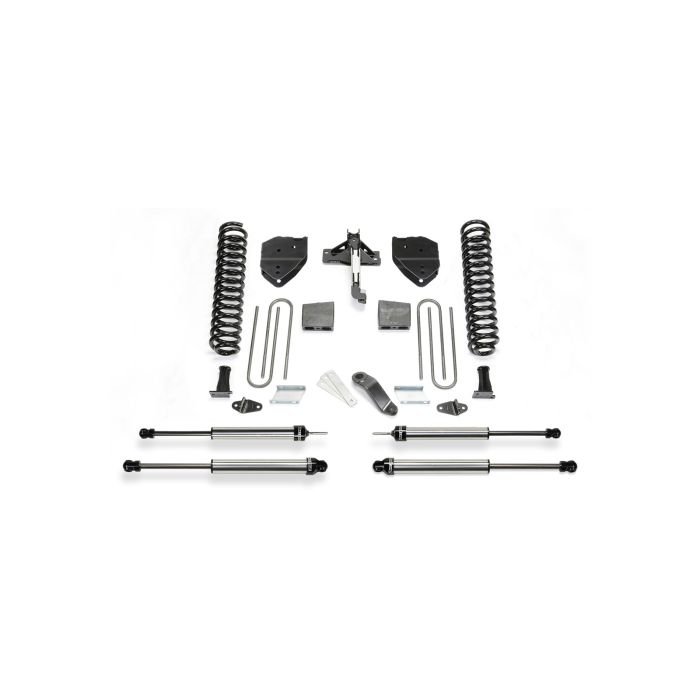

FABTECH 2017-22 6" Basic System Shocks -Ford F250/F350 4WD

PRODUCT OVERVIEW

As a popular alternative to our Radius Arm and 4 Link System this Basic Drop Bracket system is designed for the budget minded enthusiast. Application utilizes the stock radius arm. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, rear Blocks and U- bolt kit.

This system qualifies for our 5/60 Powertrain Warranty.

Kit# K2217

Use 37/12.50R17 tires w/17x9 wheels w/ 4-3/4" BS w/minor trimming

Use 37/12.50R18 tires w/18x9 wheels w/ 4-3/4" BS w/minor trimming

Use 37/13.50R20 tires w/20x9 wheels w/ 5" BS w/minor trimming

Oty Part # Description

Performance K2217,

1 FTS22024BK Coil Box Kit

1 FTS22218 Component Box

1 FTS22219 Rear Block Kit

2 FTS7188 Front Performance Shocks

2 FTS7266 Rear Performance Shocks

Stealth K2217

1 FTS22024BK Coil Box Kit

1 FTS22218 Component Box

1 FTS22219 Rear Block Kit

2 FTS6188 Front Stealth Shocks

2 FTS6063 Rear Stealth Shocks

Dirt Logic K2217DL

1 FTS22024BK Coil Box Kit

1 FTS22218 Component Box

1 FTS22219 Rear Block Kit

2 FTS810382 Front Dirt Logic 2.25 Shocks

2 FTS810052 Rear Dirt Logic 2.25 Shocks

*FOOTNOTES

3. NON DUALLY MODELS ONLY.

163. VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.

165. SOME 2017 MODELS MAY REQUIRE A DUAL STEERING STABILIZER FOR OVERSIZED TIRES. ORDER DIRT LOGIC-FTS220512, DIRT LOGIC W/RESI-FTS221162 OR STEALTH-FTS8046.

167. DIESEL MODELS ONLY. 175. VEHICLES W/ FACTORY REAR SWAY BAR MUST ORDER EXTENDED SWAY BAR LINK KIT PART NUMBER FTS22276.
