PRODUCT OVERVIEW

DESCRIPTION

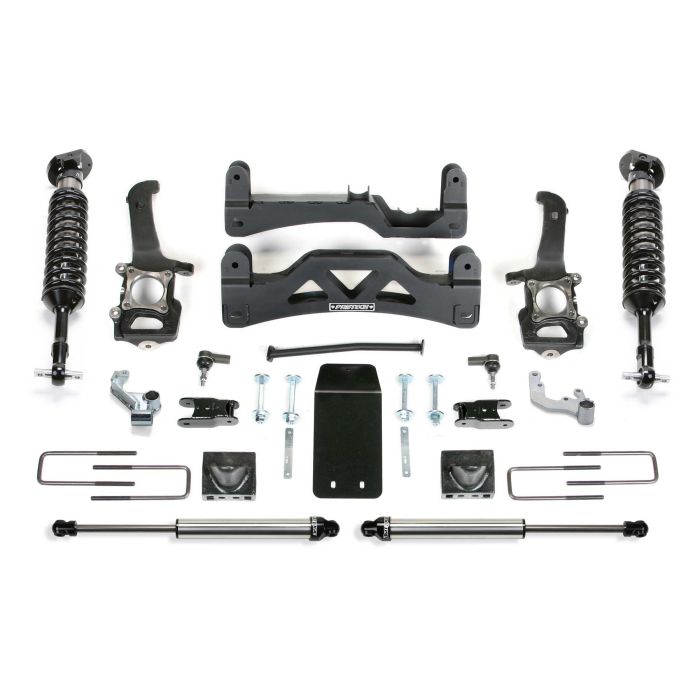

Ford’s 2014 F150 has been updated with slight changes to the suspension platform and Fabtech has taken advantage of this by developing an affordable 6” Suspension System.

This new system includes heavy duty 1/4″ thick steel lower control arm crossmembers with an integrated front differential skid plate for protection and increased front suspension strength. Fabtech extended length ductile iron steering knuckles allow use of 18″, 20″ or 22″ wheels.

The Performance System comes with Dirt Logic 2.5 Coilovers featuring Eibach coil springs in the front and Dirt Logic 2.25 in the rear for aggressive offroad driving.

• Heavy Duty 1/4″ Thick, High Arched Crossmember
• Ductile Iron Steering Knuckles
• Front Dirt Logic 2.5 Coilovers
• Rear Block & U-bolt Kit

OTY PART # DESCRIPTION

1 FTS22169 COMPONENT BOX 1

1 FTS22170 COMPONENT BOX 2

1 FTS22201 FRONT DIRT LOGIC COILOVERS

2 FTS810292 REAR DIRT LOGIC 2.25 NON RESI

FOOTNOTES

14. Can not use OEM wheel and tire.

47. Fits SuperCrew models only.

123. Will not fit Raptor Models

ADDITIONAL INFORMATION

SYSTEMS PERFORMANCE SYSTEM,  MODEL F150,  MAKE FORD,  DRIVE 4WD,  LIFT 6",  YEAR 2014.

TIRES & WHEELS

Tire Size – 325/65R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming

Tire Size – 35/13.50R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming

Tire Size – 35/13.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

FRONT DIRT LOGIC 2.5 COILOVER

From our desert racing experience the Dirt Logic 2.5 has been developed for exceptional performance in a variety of Coilover applications. The Dirt Logic 2.5 will provide incredible dampening capacity for aggressive offroad driving.

• 2.5″ OD Stainless Steel Body
• 2.25″ OD Billet Aluminum Piston
• 7/8″ NitroSteel® Black Piston Rod
• Eibach coil springs
• Adjustable Coilover Construction
• 5/8″ Spherical Ball Mounting Ends

INSTRUCTIONS
