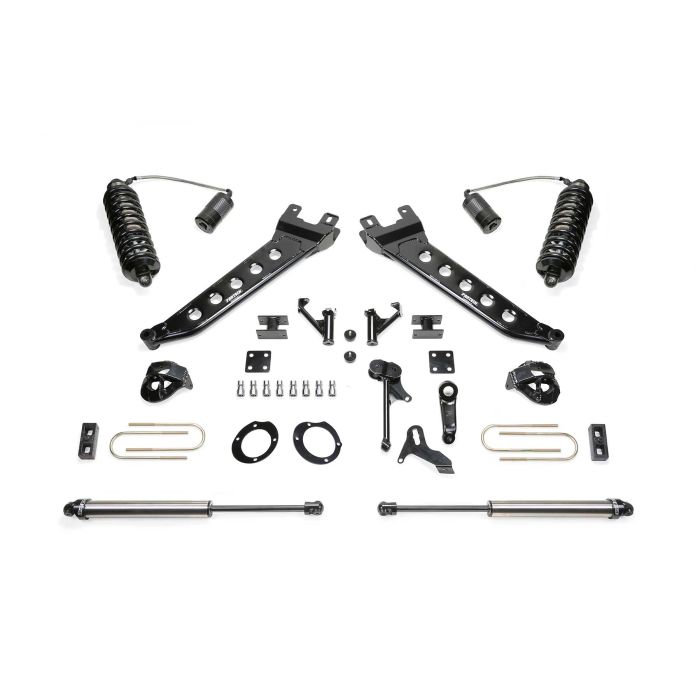

FABTECH 2013-18 RAM 3500 4WD- 7″ RADIUS ARM SYSTEM W/ DIRT LOGIC 4.0 RESI COILOVERS & DIRT LOGIC SHOCKS
PRODUCT OVERVIEW
DESCRIPTION
Improving on the Ram’s new front suspension design this system includes replacement tubular Radius Arms with Fabtech’s exclusive dimple die side plates for superior strength and a rugged appearance. These new Radius Arms provide increased caster for use with oversized tires and lifted suspension heights.The system utilizes the factory upper coil bucket with support gussets for superior strength. The lower mounts weld to the axle housing and have cross support gussets for the factory Track Bar bracket.The Dirt Logic 4.0 Resi Coilovers features a stainless steel body for maximum corrosion resistance with a remote billet aluminum reservoir. These Dirt Logic 4.0’s provide a super smooth highway ride with outstanding offroad damping for rough terrain. Heavy duty 1/4″ thick steel front Track Bar drop bracket centers the axle under the vehicle with the new ride height.
A Fabtech innovation on this system factory upper coil bucket with support gussets for superior strength. The lower mounts weld to the axle housing and have cross support gussets for the factory Track Bar bracket.The Dirt Logic 4.0 Resi Coilovers features a stainless steel body for maximum corrosion resistance with a remote billet aluminum reservoir. These Dirt Logic 4.0’s provide a super smooth highway ride with outstanding offroad damping for rough terrain. Heavy duty 1/4″ thick steel front Track Bar drop bracket centers the axle under the vehicle with the new ride height.A Fabtech innovation on this system is the steel front bump extensions. They will not blow out like extra long urethane bump stops found in other aftermarket suspensions. No chance of spring and shock damage with the Fabtech steel extensions.The rear suspension receives a block & u-bolt kit with bump stop extensions.
- Front Dirt Logic 4.0 Resi Coilovers
- Fabtech Radius Arms
- Front & Rear Steel Bump Stop Extensions
- Front Track Bar Bracket
- Rear Block & U-bolt Kit
FRONT DIRT LOGIC 4.0 RESI COILOVER
OTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS23190 | COMPONENT BOX 1 W/ DIRT LOGIC SHOCKS |
1 | FTS23189 | COMPONENT BOX 2 |
2 | FTS835122 | FRONT DIRT LOGIC 4.0 RESI COILOVER |
FRONT DIRT LOGIC 4.0 RESI COILOVER
The Dirt Logic 4.0 provides the ultimate in hardcore offroad dampening capacity with superior highway comfort in a big package. This massive high end shock is designed for full size vehicles that required the biggest and best Coilover shock in a bolt on configuration. Nothing else comes close.
- 4.0″ OD Stainless Steel Body
- 3 5/8″ OD Billet Aluminum Piston
- 1 1/4″ NitroSteel® Black Piston Rod
- Adjustable Coilover Construction
- 3/4″ Spherical Ball Mounting Ends
- 4.0″ OD Aluminum Remote Resi
REAR DIRT LOGIC 2.25 SHOCK
Dirt Logic 2.25’s are designed to replace factory shocks with a larger, more robust configuration. The 2.25 size is what separates it from other replacement take apart shocks for a superior ride, both on and off road. Shocks are pretuned for each Fabtech suspension, accounting for larger tires, providing the finest all around damping.
- 2.25″ OD Stainless Steel Body
- 2.0″ OD Billet Aluminum Piston
- 7/8″ NitroSteel® Black Piston Rod
- Polyurethane Mounting Ends
TIRES & WHEELS
- Tire Size – 37/12.50R17 Wheel Size – 17×9 w/ 5in BS w/minor trimming
- Tire Size – 37/13.50R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
- Tire Size – 37/13.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
ADDITIONAL INFORMATION
YEAR 2013, 2014, 2015, 2016, 2017, 2018
MAKE RAM
MODEL 3500
DRIVE 4WD
LIFT 7 "
SYSTEM RADIUS ARM SYSTEM
FOOTNOTES
42. Will not fit gas motors.
130. Will not fit factory air suspension.
