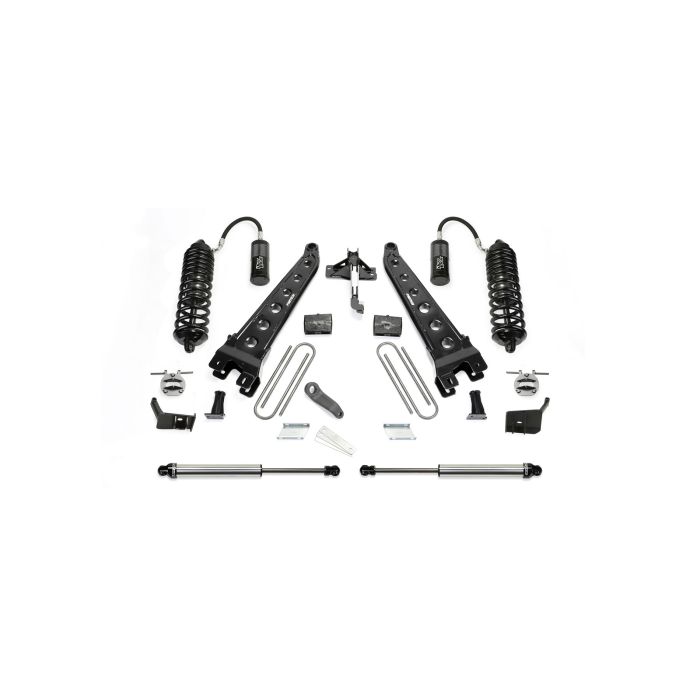

FABTECH 2017-22 6" Radius Arm System w/ Front Dirt Logic 4.0 Resi Coilovers & Rear Dirt Logic 2.25 Shocks - Ford F250/F350 4WD

PRODUCT OVERVIEW

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops, and a rear Block & U-bolt kit.

This new system utilizes the factory coil spring bucket for a fast, easy installation with an affordable price. Dirt Logic Coilovers are constructed with a Stainless Steel body and NitroSteel® piston rod for maximum corrosion resistance. The Dirt Logic 4.0 for 6” lift systems feature dual rate coil springs for a superior quality both on and offroad.

This system qualifies for our 5/60 Powertrain Warranty.

Kit# K2231DL

Use 37/12.50R17 tires w/17x9 wheels w/ 4-3/4" BS w/minor trimming

Use 37/12.50R18 tires w/18x9 wheels w/ 4-3/4" BS w/minor trimming

Use 37/13.50R20 tires w/20x9 wheels w/ 5" BS w/minor trimming

Oty Part # Description

1 FTS22220 Component Box

1 FTS22219 Rear Block Kit

1 FTS835232D Front Dirt Logic 4.0 Resi Coilover (Driver)

1 FTS835232P Front Dirt Logic 4.0 Resi Coilover (Passenger)

2 FTS810052 Rear Dirt Logic 2.25 Shocks

*FOOTNOTES

3. NON DUALLY MODELS ONLY.

163. VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFT REQUIRE FTS419.

165. SOME 2017 MODELS MAY REQUIRE A DUAL STEERING STABILIZER FOR OVERSIZED TIRES. ORDER DIRT LOGIC-FTS220512, DIRT LOGIC W/RESI-FTS221162 OR STEALTH-FTS8046. .

167. DIESEL MODELS ONLY. 175. VEHICLES W/ FACTORY REAR SWAY BAR MUST ORDER EXTENDED SWAY BAR LINK KIT PART NUMBER FTS22276.
