FABTECH 2008-16 4" 4 Link System -Ford F250/F350 4WD

PRODUCT OVERVIEW

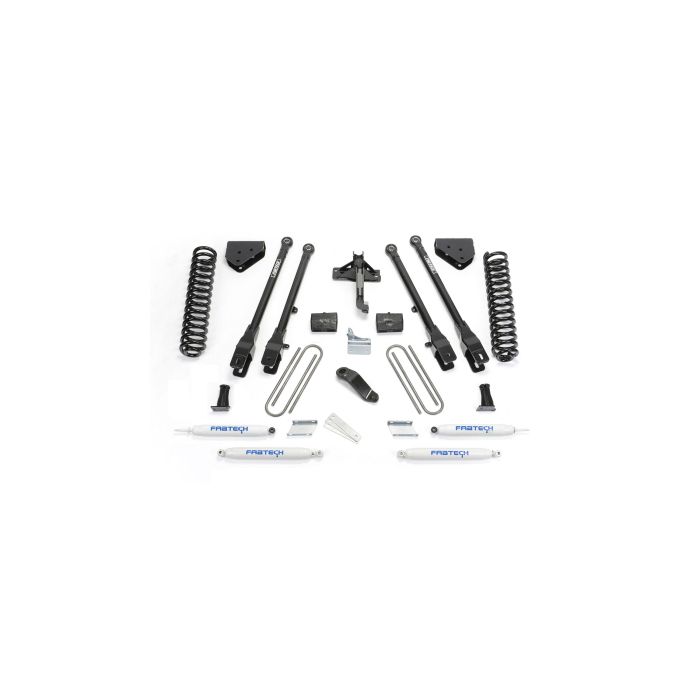

At the top of our Super Duty line is our famous bolt-on 4 Link System that provides unsurpassed articulation and wheel travel. These 2" diameter heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system is comes complete with our replacement Coil Springs, Sway Bar drops, Pitman Arm, and a rear Block & U-Bolt kit.

This system qualifies for our 5/60 Powertrain Warranty.

Kit# K2212,K2212M, K2212DL

Use 315/70R17 tires w/ 17x8 wheels w/ 4 1/2” BS w/ minor trimming

Use 325/65R18 tires w/ 18x9.5 wheels w/ 4 3/4” BS w/ minor trimming

Use 35/12.50R20 tires w/ 20x10 wheels w/ 5” BS w/ minor trimming

Oty Part # Description

Performance k2212

1 FTS22207 Coil Box Kit

1 FTS22210 Component Box 1

1 FTS22080BK Component Box 2

1 FTS22211 Rear Box Kit

2 FTS7236 Front Performance Shock

2 FTS7266 Rear Performance Shock

Stealth K2212M

1 FTS22207 Coil Box Kit

1 FTS22210 Component Box 1

1 FTS22080BK Component Box 2

1 FTS22211 Rear Box Kit

2 FTS6063 Front Stealth Shock

2 FTS6236 Rear Stealth Shock

Dirt Logic K2212DL

1 FTS22207 Coil Box Kit

1 FTS22210 Component Box 1

1 FTS22080BK Component Box 2

1 FTS22211 Rear Box Kit

2 FTS810962 Front Dirt Logic 2.25 Shock

2 FTS810052 Rear Dirt Logic 2.25 Shock

*FOOTNOTES 27.

Front drive shaft modification may be required to clear exhaust on gas motors.
