PRODUCT OVERVIEW

DESCRIPTION

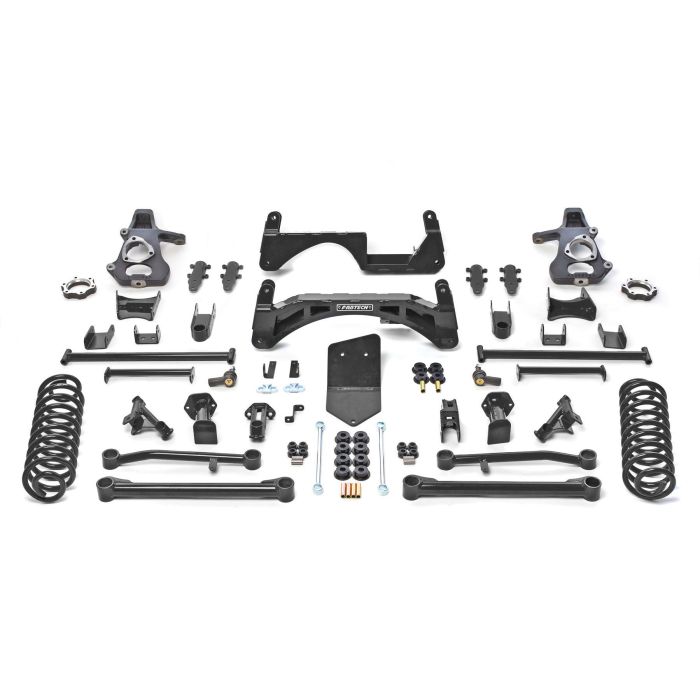

Fabtech has developed this system with our proven one piece high arched lower crossmember design. An integrated differential skid plate adds solid support of the front suspension. Special attention was given to the design of replacement extended length steering knuckles to keep the track width of the vehicle near stock while retaining turning radius for easy maneuverability in tight areas. The rear system features extended length tubular upper and lower link arms with an oversized Trac bar relocation bracket to properly place the axle under the vehicle with zero driveline vibration. Model specific rear coil springs maintain proper ride height. The Basic System also features front strut assembly spacers and rear performance coil springs. This system provides a stock like ride. Installation does not require relocation of the Rack and Pinion or disassembly of the front strut assemblies

• Heavy Duty 1/4" Thick, High Arched Crossmember
• Front Differential Skid Plate
• Ductile Iron Steering Knuckles
• Impact Struts
• Track Bar Relocation Bracket
• Rear Extended Length Tubular Upper & Lower Link Arms
• Rear Coil Springs

QTY PART # DESCRIPTION

1 FTS21040BK COMPONENT BOX 1

1 FTS21041BK COMPONENT BOX 2

1 FTS21042BK COILOVER SPACER KIT

1 FTS21051BK REAR COIL KIT

TIRES & WHEELS

Tire Size – 35/12.50R17 Wheel Size – 17×8 w/ 5in BS w/minor trimming

Tire Size – 325/65R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming

Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

ADDITIONAL INFORMATION

MAKE GM

MODEL C1500 SUT, C1500 SUV, K1500 SUT, K1500 SUV

DRIVE 2WD, 4WD

YEAR 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014

SYSTEMS BASIC SYSTEM

LIFT 6"

FOOTNOTES

8. Will not fit all wheel drive models.

16. Utilizes stock rear shocks.

72. Some models may not be level after install. Order (FTS21064) 1" rear coil spacer

132. Will not fit 2WD Suburban model
